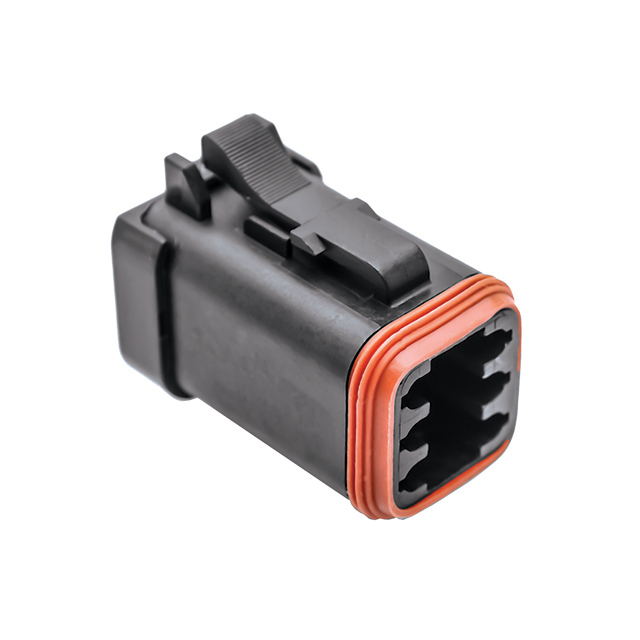

AT06-6S-EC01BLK

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 6POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAT Series Datasheet

AT06-6S-EC01BLK

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 6POS

Deep-Dive with AI

DocumentsAT Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT06-6S-EC01BLK

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Cap (Cover)
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT06-6S Series

Part	Mounting Type	Contact Termination	Contact Type	Insulation Material	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Features	Color	Number of Rows	Connector Type	Note	Accessory Type	For Use With/Related Products	Wire Type	Cable Termination	Wire Gauge [Min]	Wire Gauge [Max]
Amphenol Sine Systems Corp AT06-6S-SR02RED	Free Hanging (In-Line)	Crimp	Female Socket	Thermoplastic	Latch Lock	6	-55 °C	125 °C	Cap (Cover) IP68 IP69K Reduced Wire Seals Strain Relief	Red	3	Plug
Amphenol Sine Systems Corp AT06-6S-EC01BLK	Free Hanging (In-Line)	Crimp	Female Socket	Thermoplastic	Latch Lock	6	-55 °C	125 °C	Cap (Cover)	Black	3	Plug	Contacts Not Included
Amphenol Sine Systems Corp AT06-6S-SR02BLK	Free Hanging (In-Line)	Crimp	Female Socket	Thermoplastic	Latch Lock	6	-55 °C	125 °C	Strain Relief	Black	3	Plug	Contacts Not Included
Amphenol Sine Systems Corp AT06-6S-CAP						6			IP67					Cap (Cover) Protective	AT Series™
Amphenol Sine Systems Corp AT06-6S-RD01WHT	Free Hanging (In-Line)	Crimp	Female Socket	Thermoplastic	Latch Lock	6	-55 °C	125 °C	Sealed	White	2	Plug
Amphenol Sine Systems Corp AT06-6S-OMRDBLU	Free Hanging (In-Line)	Crimp	Female Socket	Polyamide (PA66) Nylon 6/6 Glass Filled	Latch Lock	6	-55 °C	125 °C	Sealed	Blue	2	Plug
Amphenol Sine Systems Corp AT06-6S-WHT	Free Hanging (In-Line)	Crimp	Female Socket	Thermoplastic	Latch Lock	6	-55 °C	125 °C	Sealed	White	2	Plug	Contacts Not Included
Amphenol Sine Systems Corp AT06-6S-OMGRY	Free Hanging (In-Line)	Crimp	Female Socket	Polyamide (PA66) Nylon 6/6 Glass Filled	Latch Lock	6	-55 °C	125 °C	Sealed	Gray	3	Plug	Contacts Not Included
Amphenol Sine Systems Corp AT06-6S-RED	Free Hanging (In-Line)	Crimp	Female Socket	Thermoplastic	Latch Lock	6	-55 °C	125 °C	Sealed	Red	2	Plug	Contacts Not Included
Amphenol Sine Systems Corp AT06-6S-KIT01	Free Hanging (In-Line)		Female Socket		Latch Lock	6			Wedge Lock	Gray	3	Plug				Discrete	Crimp	16 AWG	18 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.88
		10	$ 2.20
		25	$ 1.98
		50	$ 1.83
		100	$ 1.70
		250	$ 1.54
		700	$ 1.38
		1400	$ 1.29
		2800	$ 1.21

Description

General part information

AT06-6S Series

6 Rectangular Connectors - Housings Plug Black

Documents

Technical documentation and resources

AT Series

Datasheet
