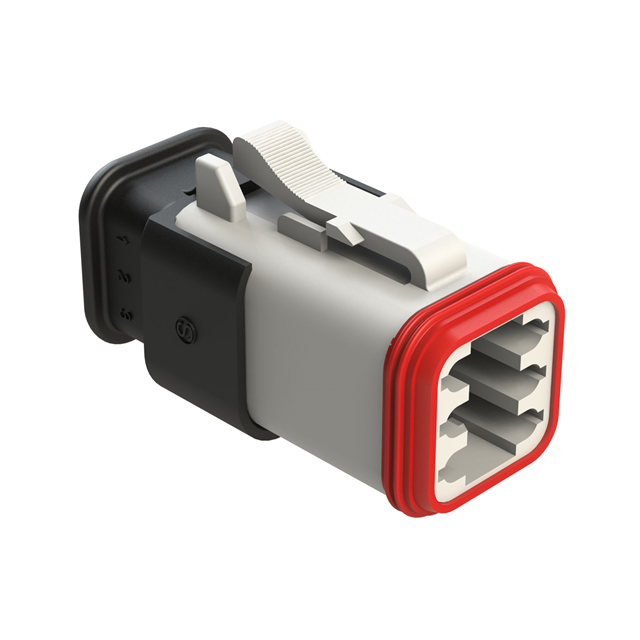

AT06-6S-SR02RED

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 6POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AT Series SR01/02

AT06-6S-SR02RED

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 6POS

Deep-Dive with AI

DocumentsDatasheet AT Series SR01/02

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT06-6S-SR02RED

Color	Red
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Cap (Cover), IP68, Strain Relief, IP69K, Reduced Wire Seals
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT06-6S Series

Part	Mounting Type	Contact Termination	Contact Type	Insulation Material	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Features	Color	Number of Rows	Connector Type	Note	Accessory Type	For Use With/Related Products	Wire Type	Cable Termination	Wire Gauge [Min]	Wire Gauge [Max]
Amphenol Sine Systems Corp AT06-6S-SR02RED	Free Hanging (In-Line)	Crimp	Female Socket	Thermoplastic	Latch Lock	6	-55 °C	125 °C	Cap (Cover) IP68 IP69K Reduced Wire Seals Strain Relief	Red	3	Plug
Amphenol Sine Systems Corp AT06-6S-EC01BLK	Free Hanging (In-Line)	Crimp	Female Socket	Thermoplastic	Latch Lock	6	-55 °C	125 °C	Cap (Cover)	Black	3	Plug	Contacts Not Included
Amphenol Sine Systems Corp AT06-6S-SR02BLK	Free Hanging (In-Line)	Crimp	Female Socket	Thermoplastic	Latch Lock	6	-55 °C	125 °C	Strain Relief	Black	3	Plug	Contacts Not Included
Amphenol Sine Systems Corp AT06-6S-CAP						6			IP67					Cap (Cover) Protective	AT Series™
Amphenol Sine Systems Corp AT06-6S-RD01WHT	Free Hanging (In-Line)	Crimp	Female Socket	Thermoplastic	Latch Lock	6	-55 °C	125 °C	Sealed	White	2	Plug
Amphenol Sine Systems Corp AT06-6S-OMRDBLU	Free Hanging (In-Line)	Crimp	Female Socket	Polyamide (PA66) Nylon 6/6 Glass Filled	Latch Lock	6	-55 °C	125 °C	Sealed	Blue	2	Plug
Amphenol Sine Systems Corp AT06-6S-WHT	Free Hanging (In-Line)	Crimp	Female Socket	Thermoplastic	Latch Lock	6	-55 °C	125 °C	Sealed	White	2	Plug	Contacts Not Included
Amphenol Sine Systems Corp AT06-6S-OMGRY	Free Hanging (In-Line)	Crimp	Female Socket	Polyamide (PA66) Nylon 6/6 Glass Filled	Latch Lock	6	-55 °C	125 °C	Sealed	Gray	3	Plug	Contacts Not Included
Amphenol Sine Systems Corp AT06-6S-RED	Free Hanging (In-Line)	Crimp	Female Socket	Thermoplastic	Latch Lock	6	-55 °C	125 °C	Sealed	Red	2	Plug	Contacts Not Included
Amphenol Sine Systems Corp AT06-6S-KIT01	Free Hanging (In-Line)		Female Socket		Latch Lock	6			Wedge Lock	Gray	3	Plug				Discrete	Crimp	16 AWG	18 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	300	$ 2.74

Description

General part information

AT06-6S Series

6 Rectangular Connectors - Housings Plug Red

Documents

Technical documentation and resources

Datasheet

AT Series SR01/02

Datasheet
