19463100546

Active

HARTING Technology Group

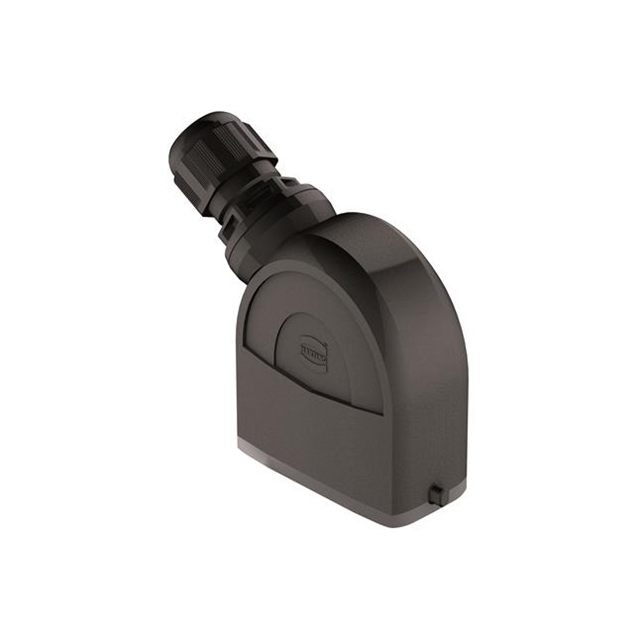

HAN-ECO 10A HOOD SIDE ENTRY M25

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-ECO 10A HOOD SIDE ENTRY M25

Technical Specifications

Parameters and characteristics for this part

Specification	19463100546

Connector Type	Hood
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10 A
Style	Side Entry
Thread Size	M25

Part	Thread Size	Style	Housing Color	Connector Type	Size	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Material
HARTING Technology Group 19463100546	M25	Side Entry	Black	Hood	10 A	Locking Clip (1) on Base Bottom	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Polyamide (PA) Nylon Glass Filled
HARTING Technology Group 19463100292	M20	Side Entry	Black	Base - Box Mount	10 A	Locking Clip (1) on Base Bottom	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Polyamide (PA) Nylon Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M25 10A IP65 - Dust Tight, Water Resistant
