19463100292

Obsolete

HARTING Technology Group

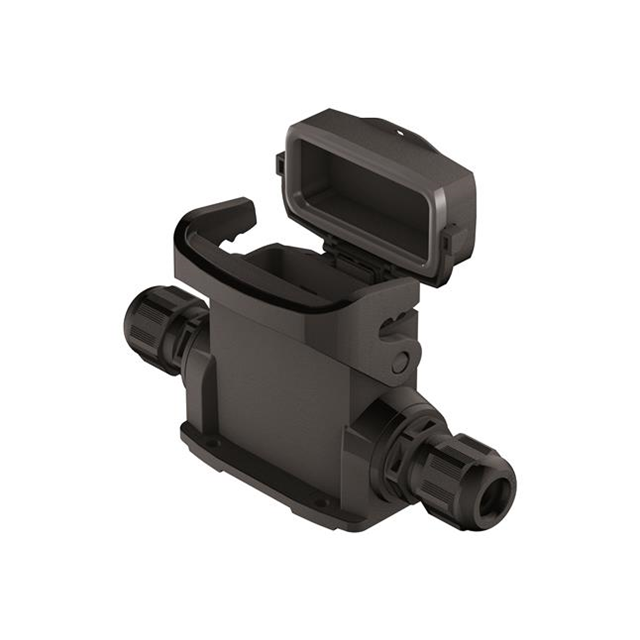

HAN-ECO 10A SURFACE MOUNT HOUSIN

Search across all available documentation for this part.

Obsolete

HARTING Technology Group

HAN-ECO 10A SURFACE MOUNT HOUSIN

Technical Specifications

Parameters and characteristics for this part

Specification	19463100292

Connector Type	Base - Box Mount
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10 A
Style	Side Entry
Thread Size	M20

Part	Thread Size	Style	Housing Color	Connector Type	Size	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Material
HARTING Technology Group 19463100546	M25	Side Entry	Black	Hood	10 A	Locking Clip (1) on Base Bottom	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Polyamide (PA) Nylon Glass Filled
HARTING Technology Group 19463100292	M20	Side Entry	Black	Base - Box Mount	10 A	Locking Clip (1) on Base Bottom	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Polyamide (PA) Nylon Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Base - Box Mount Connector Side Entry M20 10A IP65 - Dust Tight, Water Resistant
