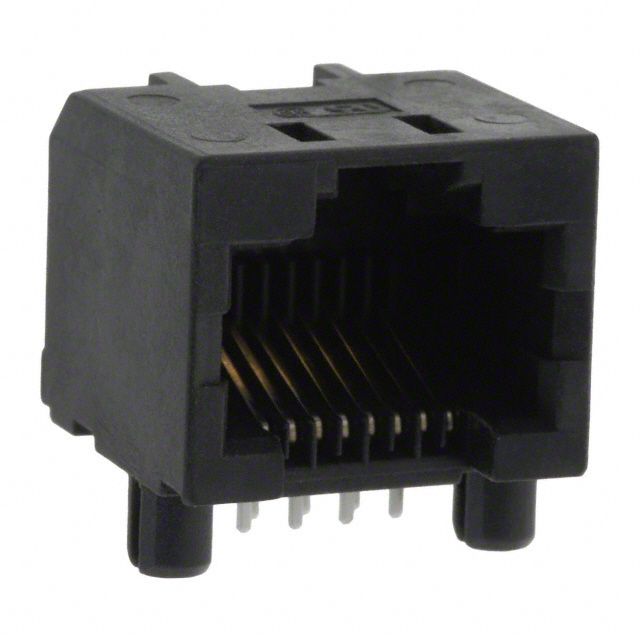

RJHSE-5080
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C R/A UNSHLD
Deep-Dive with AI
Search across all available documentation for this part.
RJHSE-5080
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C R/A UNSHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJHSE-5080 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | 90 ° |
| Shielding | Unshielded |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.03 | |
| 10 | $ 0.87 | |||
| 36 | $ 0.83 | |||
| 72 | $ 0.81 | |||
| 108 | $ 0.78 | |||
| 252 | $ 0.71 | |||
| 504 | $ 0.64 | |||
| 1008 | $ 0.57 | |||
| 2520 | $ 0.51 | |||
Description
General part information
RJHSE508 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded
