RJHSE-5085-02

Active

Amphenol ICC (Commercial Products)

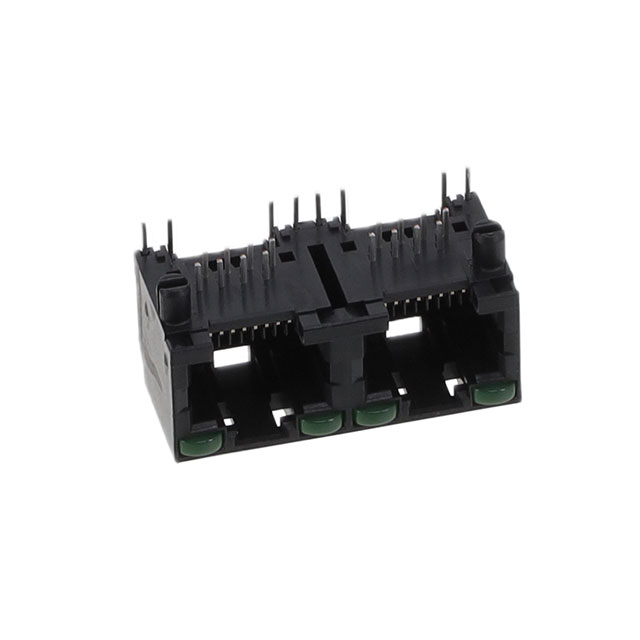

CONN MOD JACK 8P8C R/A UNSHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRJHSE Series Brochure Datasheet

RJHSE-5085-02

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A UNSHLD

Deep-Dive with AI

DocumentsRJHSE Series Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJHSE-5085-02

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Green - Green
Mounting Type	Through Hole
Number of Ports	2
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	90 °
Shielding	Unshielded
Tab Direction	Up
Termination	Solder

RJHSE508 Series

...

Part	Number of Rows	LED Color	Mounting Type	Orientation	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Finish	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Material	Number of Positions/Contacts	Tab Direction	Shielding	Termination
Amphenol ICC (Commercial Products) RJHSE508108	1	Yellow - Green	Through Hole	90 °	50 µin	1.27 µm	Phosphor Bronze	Gold	8	85 °C	-55 °C	Jack	Thermoplastic	8p8c (RJ45 Ethernet)	Up	Unshielded	Solder
Amphenol ICC (Commercial Products) RJHSE-5085-02	1	Green - Green	Through Hole	90 °	50 µin	1.27 µm	Phosphor Bronze	Gold	2	85 °C	-55 °C	Jack	Thermoplastic	8p8c (RJ45 Ethernet)	Up	Unshielded	Solder
Amphenol ICC (Commercial Products) RJHSE-5080	1	Does Not Contain LED	Through Hole	90 °	50 µin	1.27 µm	Phosphor Bronze	Gold	1	85 °C	-55 °C	Jack	Thermoplastic	8p8c (RJ45 Ethernet)	Up	Unshielded	Solder
Amphenol ICC (Commercial Products) RJHSE508F	1	Green Yellow - Yellow	Through Hole	90 °	50 µin	1.27 µm	Phosphor Bronze	Gold	1	85 °C	-55 °C	Jack	Thermoplastic	8p8c (RJ45 Ethernet)	Up	Unshielded	Solder
Amphenol ICC (Commercial Products) RJHSE5081A8	1	Yellow - Green	Through Hole	90 °	50 µin	1.27 µm	Phosphor Bronze	Gold	8	85 °C	-55 °C	Jack	Thermoplastic	8p8c (RJ45 Ethernet)	Up	Unshielded	Solder
Amphenol ICC (Commercial Products) RJHSE508202	1	Green	Through Hole	90 °	50 µin	1.27 µm	Phosphor Bronze	Gold	2	85 °C	-55 °C	Jack	Thermoplastic	8p8c (RJ45 Ethernet)	Up	Unshielded	Solder
Amphenol ICC (Commercial Products) RJHSE508V02	1	Green Red	Through Hole	90 °	50 µin	1.27 µm	Phosphor Bronze	Gold	2	85 °C	-55 °C	Jack	Thermoplastic	8p8c (RJ45 Ethernet)	Up	Unshielded	Solder
Amphenol ICC (Commercial Products) RJHSE508E08	1	Yellow Yellow - Green	Through Hole	90 °	50 µin	1.27 µm	Phosphor Bronze	Gold	8	85 °C	-55 °C	Jack	Thermoplastic	8p8c (RJ45 Ethernet)	Up	Unshielded	Solder
Amphenol ICC (Commercial Products) RJHSE508M	1	Red Yellow	Through Hole	90 °	50 µin	1.27 µm	Phosphor Bronze	Gold	1	85 °C	-55 °C	Jack	Thermoplastic	8p8c (RJ45 Ethernet)	Up	Unshielded	Solder
Amphenol ICC (Commercial Products) RJHSE508D02	1	Green - Green Yellow	Through Hole	90 °	50 µin	1.27 µm	Phosphor Bronze	Gold	2	85 °C	-55 °C	Jack	Thermoplastic	8p8c (RJ45 Ethernet)	Up	Unshielded	Solder
