H2AXG-10106-G4
ActiveHirose Electric USA, Inc.
JUMPER-H1503TR/A2015G/X 6"
Deep-Dive with AI
Search across all available documentation for this part.
H2AXG-10106-G4
ActiveHirose Electric USA, Inc.
JUMPER-H1503TR/A2015G/X 6"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H2AXG-10106-G4 |
|---|---|
| Color | Green |
| Contact End | Pin to Cable (Round) |
| Contact Finish | Gold |
| Length | 152.4 mm |
| Length | 6 in |
| Number of Conductors | 1 |
| Number of Rows | 1 |
| Wire Gauge | 24 AWG |
H2AXG Series
...
| Part | Number of Rows | Length [x] | Length | Contact Finish | Number of Conductors | Color | Wire Gauge | Contact End | Length | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 1 | 3 in | 76.2 mm | Gold | 1 | Violet | 28 AWG | Pin to Cable (Round) | ||
Hirose Electric USA, Inc. | 1 | 203.2 mm | Gold | 1 | Violet | 24 AWG | Pin to Cable (Round) | 8 in | ||
Hirose Electric USA, Inc. | 1 | 152.4 mm | Gold | 1 | White | 26 AWG | Pin to Cable (Round) | 6 in | ||
Hirose Electric USA, Inc. | 1 | 12 in | 304.8 mm | Gold | 1 | Red | 28 AWG | Pin to Cable (Round) | ||
Hirose Electric USA, Inc. | 1 | 4 " | Gold | 1 | 24 AWG | Pin to Cable (Round) | 101.6 mm | |||
Hirose Electric USA, Inc. | 1 | 3 in | 76.2 mm | Gold | 1 | Green | 24 AWG | Pin to Cable (Round) | ||
Hirose Electric USA, Inc. | 1 | 3 in | 76.2 mm | Gold | 1 | 26 AWG | Pin to Cable (Round) | |||
Hirose Electric USA, Inc. | 1 | 152.4 mm | Gold | 1 | Green | 24 AWG | Pin to Cable (Round) | 6 in | ||
Hirose Electric USA, Inc. | 1 | 10 in | 254 mm | Gold | 1 | Brown | 28 AWG | Pin to Cable (Round) | ||
Hirose Electric USA, Inc. | 1 | 152.4 mm | Gold | 1 | Yellow | 26 AWG | Pin to Cable (Round) | 6 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 0.81 | |
| 30 | $ 0.71 | |||
| 50 | $ 0.67 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.56 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.48 | |||
| 2500 | $ 0.44 | |||
| 5000 | $ 0.41 | |||
Description
General part information
H2AXG Series

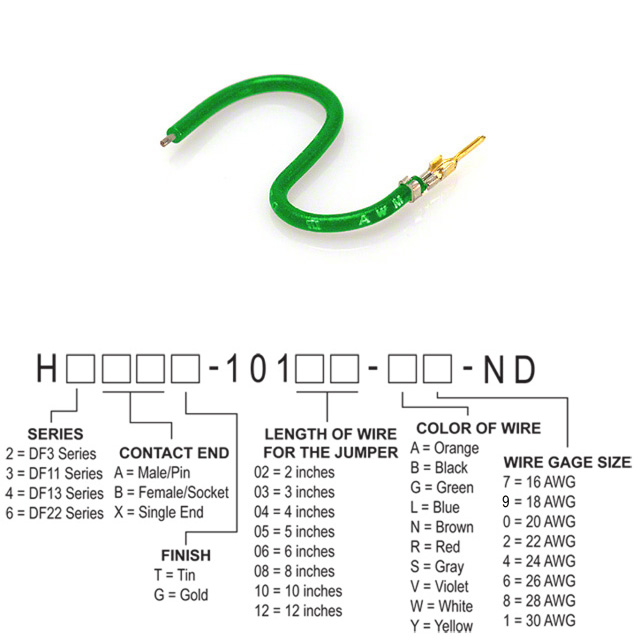

Green 24 AWG Jumper Lead Pin to Cable (Round) Gold 6.00" (152.40mm)
