H2AXG-10112-R8

Active

Hirose Electric USA, Inc.

JUMPER-H1503TR/A3048R/X 12"

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

JUMPER-H1503TR/A3048R/X 12"

Technical Specifications

Parameters and characteristics for this part

...

Part	Number of Rows	Length [x]	Length	Contact Finish	Number of Conductors	Color	Wire Gauge	Contact End	Length	Length [x]
Hirose Electric USA, Inc. H2AXG-10103-V8	1	3 in	76.2 mm	Gold	1	Violet	28 AWG	Pin to Cable (Round)
Hirose Electric USA, Inc. H2AXG-10108-V4	1		203.2 mm	Gold	1	Violet	24 AWG	Pin to Cable (Round)	8 in
Hirose Electric USA, Inc. H2AXG-10106-W6	1		152.4 mm	Gold	1	White	26 AWG	Pin to Cable (Round)	6 in
Hirose Electric USA, Inc. H2AXG-10112-R8	1	12 in	304.8 mm	Gold	1	Red	28 AWG	Pin to Cable (Round)
Hirose Electric USA, Inc. H2AXG-10104-A4	1	4 "		Gold	1		24 AWG	Pin to Cable (Round)		101.6 mm
Hirose Electric USA, Inc. H2AXG-10103-G4	1	3 in	76.2 mm	Gold	1	Green	24 AWG	Pin to Cable (Round)
Hirose Electric USA, Inc. H2AXG-10103-A6	1	3 in	76.2 mm	Gold	1		26 AWG	Pin to Cable (Round)
Hirose Electric USA, Inc. H2AXG-10106-G4	1		152.4 mm	Gold	1	Green	24 AWG	Pin to Cable (Round)	6 in
Hirose Electric USA, Inc. H2AXG-10110-N8	1	10 in	254 mm	Gold	1	Brown	28 AWG	Pin to Cable (Round)
Hirose Electric USA, Inc. H2AXG-10106-Y6	1		152.4 mm	Gold	1	Yellow	26 AWG	Pin to Cable (Round)	6 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

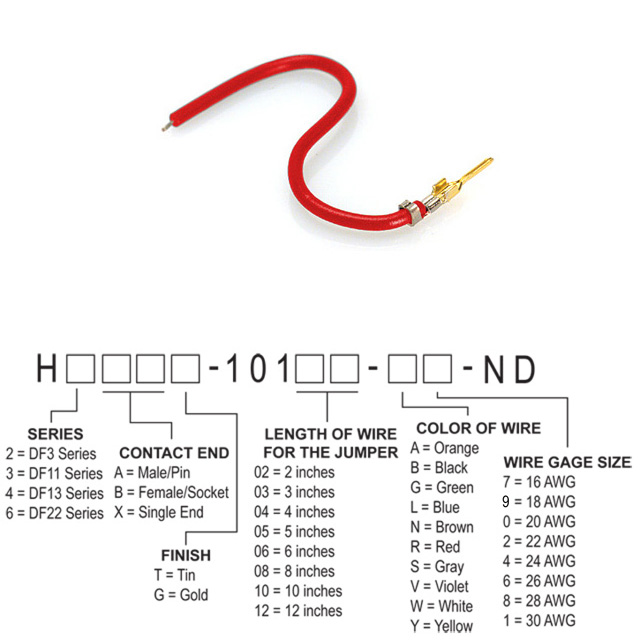

Red 28 AWG Jumper Lead Pin to Cable (Round) Gold 12.0" (304.8mm)
