0150310207

Active

Molex

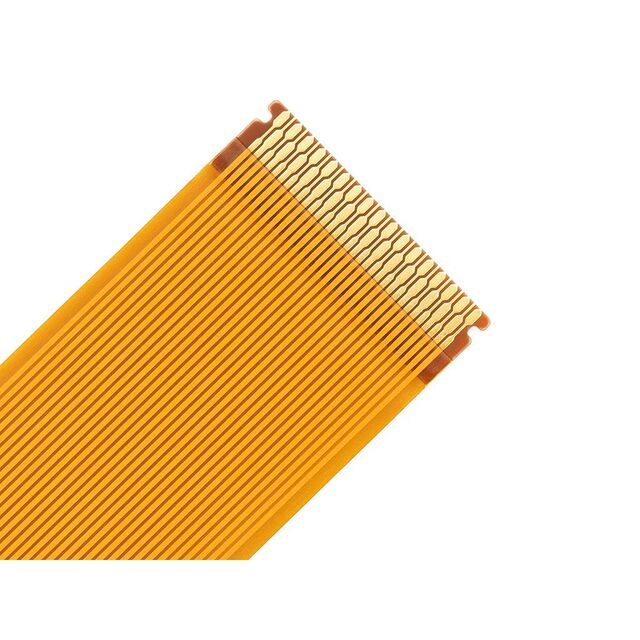

CABLE FFC/FPC 7POS 0.3MM 2"

Search across all available documentation for this part.

Active

Molex

CABLE FFC/FPC 7POS 0.3MM 2"

Technical Specifications

Parameters and characteristics for this part

Specification	0150310207

Cable Type	FPC, FFC
Length	50.8 mm
Length	2 in
Length - Exposed Ends [x]	0.079 in
Length - Exposed Ends [x]	2 mm
Number of Conductors	7
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Cable Type	Pitch [x]	Pitch [x]	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Length	Length	Termination Style	Number of Conductors	Length [x]
Molex 0150310807	FFC FPC	0.012 in	0.3 mm	0.079 in	2 mm	8 in	203.2 mm	Backers on Both Sides Top on Both Sides	7
Molex 0150310831	FFC FPC	0.012 in	0.3 mm	0.079 in	2 mm	8 in	203.2 mm	Backers on Both Sides Top on Both Sides	31
Molex 0150310207	FFC FPC	0.012 in	0.3 mm	0.079 in	2 mm	2 in	50.8 mm	Backers on Both Sides Top on Both Sides	7
Molex 0150310815	FFC FPC	0.012 in	0.3 mm	0.079 in	2 mm	8 in	203.2 mm	Backers on Both Sides Top on Both Sides	15
Molex 0150310615	FFC FPC	0.012 in	0.3 mm	0.079 in	2 mm	6 in	152.4 mm	Backers on Both Sides Top on Both Sides	15
Molex 0150311007	FFC FPC	0.012 in	0.3 mm	0.079 in	2 mm		254 mm	Backers on Both Sides Top on Both Sides	7	10 in
Molex 0150311015	FFC FPC	0.012 in	0.3 mm	0.079 in	2 mm		254 mm	Backers on Both Sides Top on Both Sides	15	10 in
Molex 0150310811	FFC FPC	0.012 in	0.3 mm	0.079 in	2 mm	8 in	203.2 mm	Backers on Both Sides Top on Both Sides	11
Molex 0150310233	FFC FPC	0.012 in	0.3 mm	0.079 in	2 mm	2 in	50.8 mm	Backers on Both Sides Top on Both Sides	33
Molex 0150310433	FFC FPC	0.012 in	0.3 mm	0.079 in	2 mm	4 in	101.6 mm	Backers on Both Sides Top on Both Sides	33

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position FFC, FPC Cable 0.012" (0.30mm) 2.000" (50.80mm)

Technical documentation and resources

No documents available
