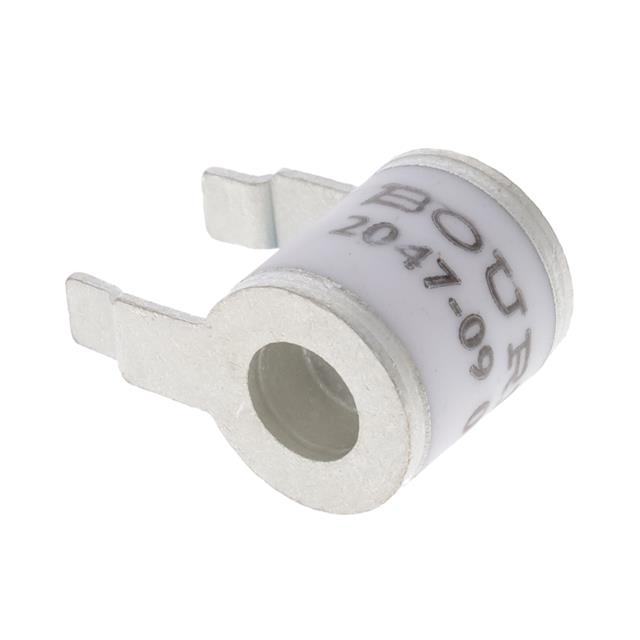

2047-09-BLF

Active

Bourns Inc.

GDT 90V 40KA 2 POLE THROUGH HOLE

Search across all available documentation for this part.

Active

Bourns Inc.

GDT 90V 40KA 2 POLE THROUGH HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	2047-09-BLF

Fail Short	False
Impulse Discharge Current (8/20µs)	40000 A
Impulse Discharge Current (8/20µs)	40 kA
Mounting Type	Through Hole
Number of Poles	2
Package / Case	Axial Cylinder, Radial Bend
Tolerance	20 %
Voltage - DC Spark Over (Nom)	90 V

Part	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Voltage - DC Spark Over (Nom)	Package / Case	Mounting Type	Tolerance	Number of Poles
Bourns Inc. 2047-15-BNI	40000 A	40 kA	150 V	Axial Cylinder Radial Bend	Through Hole	20 %	2
Bourns Inc. 2047-35-ANI	40000 A	40 kA	350 V	Cylinder No Lead	User Defined	20 %	2
Bourns Inc. 2047-09-BLF	40000 A	40 kA	90 V	Axial Cylinder Radial Bend	Through Hole	20 %	2
Bourns Inc. 2047-09-BNI	40000 A	40 kA	90 V	Axial Cylinder Radial Bend	Through Hole	20 %	2
Bourns Inc. 2047-23-BNI	40000 A	40 kA	230 V	Axial Cylinder Radial Bend	Through Hole	20 %	2
Bourns Inc. 2047-15-ALF	40000 A	40 kA	150 V	Cylinder No Lead	User Defined	20 %	2
Bourns Inc. 2047-35-BLF	40000 A	40 kA	350 V	Axial Cylinder Radial Bend	Through Hole	20 %	2
Bourns Inc. 2047-23-ALF	40000 A	40 kA	230 V	Cylinder No Lead	User Defined	20 %	2
Bourns Inc. 2047-15-ANI	40000 A	40 kA	150 V	Cylinder No Lead	User Defined	20 %	2
Bourns Inc. 2047-09-ANI	40000 A	40 kA	90 V	Cylinder No Lead	User Defined	20 %	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Gas Discharge Tube 90 V 40000A (40kA) ±20% 2 Pole Through Hole
