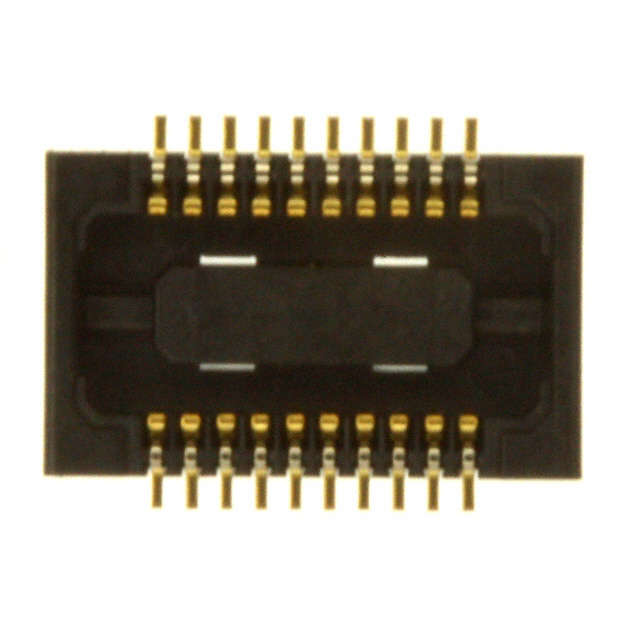

DF30FB-20DS-0.4V(81)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 20POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF30FB-20DS-0.4V(81)

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.88 mm
Height Above Board	0.035 "
Mated Stacking Heights	0.9 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Positions	Connector Type	Contact Finish	Height Above Board	Height Above Board	Mated Stacking Heights	Number of Rows	Features	Mounting Type	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. DF30FB-20DS-0.4V(81)	20	Receptacle Outer Shroud Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF30FB-80DP-0.4V(81)	80	Header Center Strip Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF30FB-60DS-0.4V(82)	60	Receptacle Outer Shroud Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF30FB-30DS-0.4V(82)	30	Receptacle Outer Shroud Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF30FB-30DS-0.4V(81)	30	Receptacle Outer Shroud Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF30FB-20DP-0.4V(51)
Hirose Electric USA, Inc. DF30FB-80DS-0.4V(82)	80	Receptacle Outer Shroud Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF30FB-44DS-0.4V(81)	44	Receptacle Outer Shroud Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF30FB-20DS-0.4V(51)
Hirose Electric USA, Inc. DF30FB-34DS-0.4V(82)	34	Receptacle Outer Shroud Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
