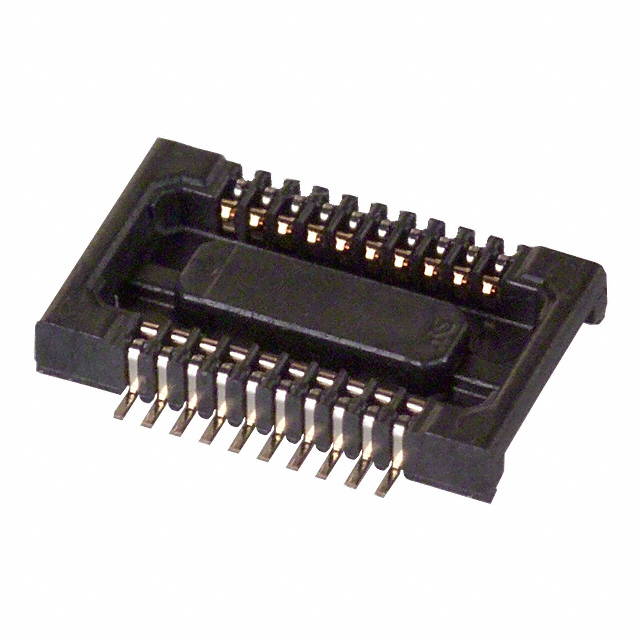

DF30FB-20DS-0.4V(51)

Obsolete

Hirose Electric USA, Inc.

CONNECTOR

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	DF30FB-20DS-0.4V(51)

null

Part	Number of Positions	Connector Type	Contact Finish	Height Above Board	Height Above Board	Mated Stacking Heights	Number of Rows	Features	Mounting Type	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. DF30FB-20DS-0.4V(81)	20	Receptacle Outer Shroud Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF30FB-80DP-0.4V(81)	80	Header Center Strip Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF30FB-60DS-0.4V(82)	60	Receptacle Outer Shroud Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF30FB-30DS-0.4V(82)	30	Receptacle Outer Shroud Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF30FB-30DS-0.4V(81)	30	Receptacle Outer Shroud Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF30FB-20DP-0.4V(51)
Hirose Electric USA, Inc. DF30FB-80DS-0.4V(82)	80	Receptacle Outer Shroud Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF30FB-44DS-0.4V(81)	44	Receptacle Outer Shroud Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF30FB-20DS-0.4V(51)
Hirose Electric USA, Inc. DF30FB-34DS-0.4V(82)	34	Receptacle Outer Shroud Contacts	Gold	0.88 mm	0.035 "	0.9 mm	2	Solder Retention	Surface Mount	0.016 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Position Connector

Technical documentation and resources

No documents available
