DF3Z-8P-2H(50)

Obsolete

Hirose Electric USA, Inc.

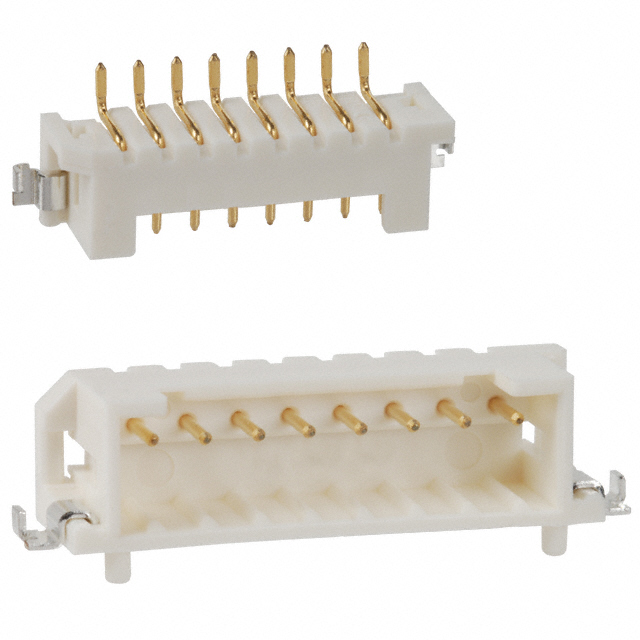

CONN HEADER SMD R/A 8POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DF3Z-8P-2H(50)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD R/A 8POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3Z-8P-2H(50)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Solder Retention, Board Guide
Insulation Color	Beige
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

DF3Z Series

Part	Insulation Color	Fastening Type	Contact Finish - Mating	Features	Mated Stacking Heights	Contact Shape	Insulation Height	Insulation Height	Contact Material	Style	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Termination	Material Flammability Rating	Insulation Material	Number of Rows	Connector Type	Shrouding	Number of Positions Loaded	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. DF3Z-5P-2V(50)	Beige	Push-Pull	Gold	Board Guide Solder Retention	7.7 mm 8.4 mm	Circular	5.9 mm	0.232 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount	105 ░C	-55 °C
Hirose Electric USA, Inc. DF3Z-8P-2H(50)	Beige	Push-Pull	Gold	Board Guide Solder Retention		Circular	5.6 mm	0.22 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount Right Angle	105 ░C	-55 °C	8
Hirose Electric USA, Inc. DF3Z-4P-2H(51)	Beige	Push-Pull	Gold	Board Guide Solder Retention		Circular	5.6 mm	0.22 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount Right Angle	105 ░C	-55 °C	4
Hirose Electric USA, Inc. DF3Z-3P-2V(21)	Beige	Push-Pull		Board Guide Solder Retention	7.7 mm 8.4 mm	Circular	5.9 mm	0.232 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount	105 ░C	-55 °C		Tin
Hirose Electric USA, Inc. DF3Z-2P-2H(50)	Beige	Push-Pull	Gold	Board Guide Solder Retention		Circular	5.6 mm	0.22 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount Right Angle	105 ░C	-55 °C	2
Hirose Electric USA, Inc. DF3Z-6P-2V(21)	Beige	Push-Pull		Board Guide Solder Retention	7.7 mm 8.4 mm	Circular	5.9 mm	0.232 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount	105 ░C	-55 °C	6	Tin
Hirose Electric USA, Inc. DF3Z-9P-2V(20)	Beige	Push-Pull		Board Guide Solder Retention	7.7 mm 8.4 mm	Circular	5.9 mm	0.232 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount	105 ░C	-55 °C	9	Tin	1 µm	39.4 µin
Hirose Electric USA, Inc. DF3Z-4P-2H(50)	Beige	Push-Pull	Gold	Board Guide Solder Retention		Circular	5.6 mm	0.22 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount Right Angle	105 ░C	-55 °C	4
Hirose Electric USA, Inc. DF3Z-8P-2V(50)	Beige	Push-Pull	Gold	Board Guide Solder Retention	7.7 mm 8.4 mm	Circular	5.9 mm	0.232 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount	105 ░C	-55 °C	8
Hirose Electric USA, Inc. DF3Z-4P-2H(20)	Beige	Push-Pull		Board Guide Solder Retention		Circular	5.6 mm	0.22 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount Right Angle	105 ░C	-55 °C	4	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF3Z Series

Connector Header Surface Mount, Right Angle 8 position 0.079" (2.00mm)
