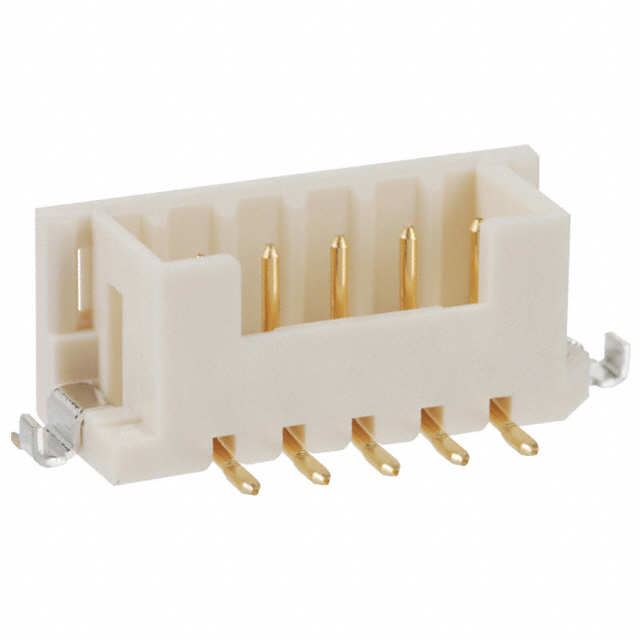

DF3Z-5P-2V(50)

Unknown

Hirose Electric USA, Inc.

CONN HEADER SMD 5POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF3Z-5P-2V(50)

Unknown

Hirose Electric USA, Inc.

CONN HEADER SMD 5POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3Z-5P-2V(50)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Solder Retention, Board Guide
Insulation Color	Beige
Insulation Height	5.9 mm
Insulation Height	0.232 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	8.4 mm, 7.7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

DF3Z Series

Part	Insulation Color	Fastening Type	Contact Finish - Mating	Features	Mated Stacking Heights	Contact Shape	Insulation Height	Insulation Height	Contact Material	Style	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Termination	Material Flammability Rating	Insulation Material	Number of Rows	Connector Type	Shrouding	Number of Positions Loaded	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. DF3Z-5P-2V(50)	Beige	Push-Pull	Gold	Board Guide Solder Retention	7.7 mm 8.4 mm	Circular	5.9 mm	0.232 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount	105 ░C	-55 °C
Hirose Electric USA, Inc. DF3Z-8P-2H(50)	Beige	Push-Pull	Gold	Board Guide Solder Retention		Circular	5.6 mm	0.22 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount Right Angle	105 ░C	-55 °C	8
Hirose Electric USA, Inc. DF3Z-4P-2H(51)	Beige	Push-Pull	Gold	Board Guide Solder Retention		Circular	5.6 mm	0.22 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount Right Angle	105 ░C	-55 °C	4
Hirose Electric USA, Inc. DF3Z-3P-2V(21)	Beige	Push-Pull		Board Guide Solder Retention	7.7 mm 8.4 mm	Circular	5.9 mm	0.232 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount	105 ░C	-55 °C		Tin
Hirose Electric USA, Inc. DF3Z-2P-2H(50)	Beige	Push-Pull	Gold	Board Guide Solder Retention		Circular	5.6 mm	0.22 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount Right Angle	105 ░C	-55 °C	2
Hirose Electric USA, Inc. DF3Z-6P-2V(21)	Beige	Push-Pull		Board Guide Solder Retention	7.7 mm 8.4 mm	Circular	5.9 mm	0.232 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount	105 ░C	-55 °C	6	Tin
Hirose Electric USA, Inc. DF3Z-9P-2V(20)	Beige	Push-Pull		Board Guide Solder Retention	7.7 mm 8.4 mm	Circular	5.9 mm	0.232 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount	105 ░C	-55 °C	9	Tin	1 µm	39.4 µin
Hirose Electric USA, Inc. DF3Z-4P-2H(50)	Beige	Push-Pull	Gold	Board Guide Solder Retention		Circular	5.6 mm	0.22 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount Right Angle	105 ░C	-55 °C	4
Hirose Electric USA, Inc. DF3Z-8P-2V(50)	Beige	Push-Pull	Gold	Board Guide Solder Retention	7.7 mm 8.4 mm	Circular	5.9 mm	0.232 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount	105 ░C	-55 °C	8
Hirose Electric USA, Inc. DF3Z-4P-2H(20)	Beige	Push-Pull		Board Guide Solder Retention		Circular	5.6 mm	0.22 in	Brass	Board to Board Cable	Male Pin	0.079 in	2 mm	3 A	Solder	UL94 V-0	Nylon Polyamide (PA)	1	Header	Shrouded - 4 Wall	All	Surface Mount Right Angle	105 ░C	-55 °C	4	Tin
