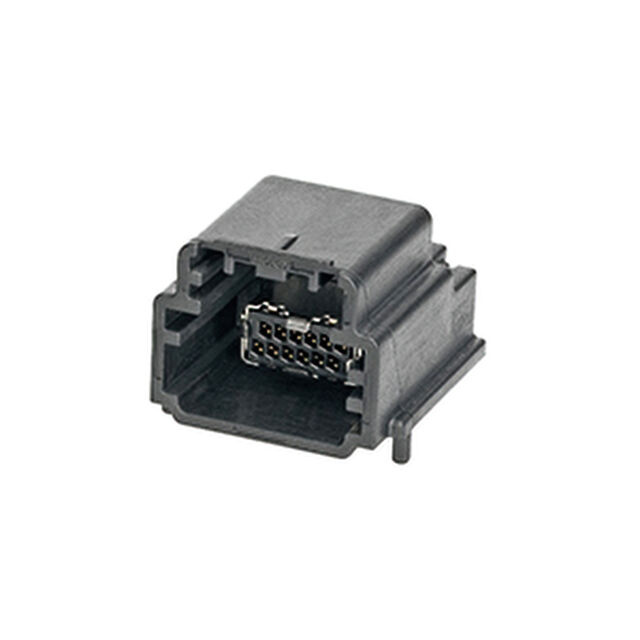

0348611106

Active

Molex

CONN HDR 12P 0.05 GOLD EDGE MNT

Search across all available documentation for this part.

Active

Molex

CONN HDR 12P 0.05 GOLD EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	0348611106

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Finish Thickness - Post	2.5 µm
Contact Finish Thickness - Post	98.4 µin
Contact Material	Copper Alloy
Contact Type	Female Socket
Current Rating (Amps)	1.5 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Black
Insulation Height	14.1 mm
Insulation Height	0.555 in
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	36 VDC

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Current Rating (Amps)	Contact Finish - Post	Contact Type	Termination	Style	Number of Rows	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Connector Type	Mounting Type	Number of Positions	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Features	Shrouding	Contact Shape
Molex 0348611106	16 Áin	0.41 Ám	0.05 in	1.27 mm	Black	36 VDC	-40 °C	105 ░C	Gold	1.5 A	Tin	Female Socket	Solder	Board to Cable/Wire	2	0.05 in	1.27 mm	All	14.1 mm	0.555 in	Header	Board Edge Right Angle Through Hole	12	Locking Ramp	2.5 µm	98.4 µin	Copper Alloy	Board Guide
Molex 0348611406	16 Áin	0.41 Ám	0.079 in	2 mm	Black	36 VDC	-40 °C	105 ░C	Gold	1.5 A	Tin	Male Pin	Solder	Board to Cable/Wire	2	0.05 in	1.27 mm	All	15.7 mm	0.618 in	Header	Through Hole Right Angle	12		2.5 µm	98.4 µin	Copper Alloy	Board Guide Solder Retention	Shrouded - 4 Wall	Rectangular
Molex 0348611426
Molex 0348611306
Molex 0348617029
Molex 0348617019
Molex 0348611316
Molex 0348611416

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	390	$ 9.39

General part information

12 Position Header Connector 0.050" (1.27mm) Board Edge, Through Hole, Right Angle Gold
