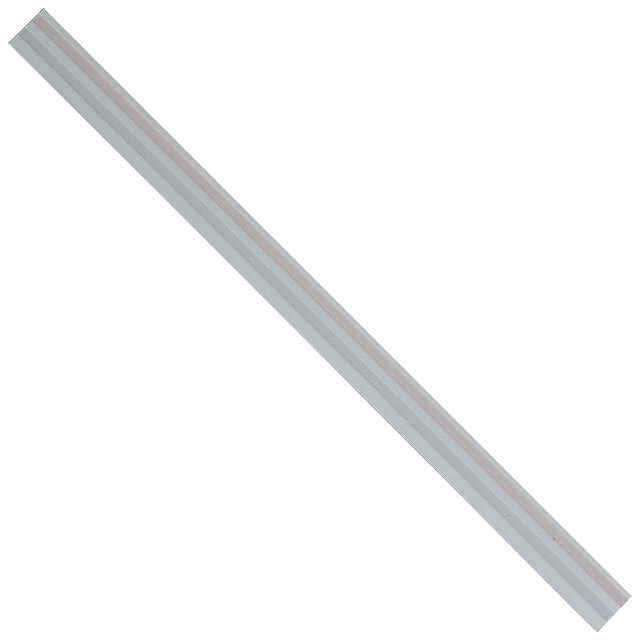

PSR1635-02

Active

Parlex USA LLC

CABLE FFC 2COND 0.100" 500'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PSR1635-02

Active

Parlex USA LLC

CABLE FFC 2COND 0.100" 500'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSR1635-02

Cable Length	50 ft, 250 ft, 5 ft, 10 ft, 500 ft, 300 in
Cable Length	15.24 m, 76.2 m, 1.52 m, 3.05 m, 152.4 m, 7.62 m
Cable Width	0.3 in
Cable Width	7.57 mm
Conductor Material	Copper, Bare
Current Rating (Amps)	3 A
Features	Conductor 1 Tinned
Jacket (Insulation) Material	Polyester
Jacket (Insulation) Thickness	0.05 mm
Jacket (Insulation) Thickness	0.002 in
Number of Conductors	2
Operating Temperature	105 C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Ratings	UL Style 2643
Voltage Rating	300 VDC
Wire Gauge	27 AWG

PSR1635 Series

Part	Pitch [x]	Pitch [x]	Ratings	Cable Length	Cable Length	Cable Width	Cable Width	Number of Conductors	Current Rating (Amps)	Operating Temperature	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage Rating	Jacket (Insulation) Material	Wire Gauge	Features	Cable Width [y]	Cable Width [y]
Parlex USA LLC PSR1635-14	2.54 mm	0.1 in	UL Style 2643	1.52 m 7.62 m 15.24 m 30.5 m 76.2 m 152.4 m	5 ft 50 ft 100 ' 250 ft 300 in 500 ft	38.1 mm	1.5 in	14	3 A	105 C	Copper Bare	0.05 mm	0.002 in	300 VDC	Polyester	27 AWG	Conductor 1 Tinned
Parlex USA LLC PSR1635-02	2.54 mm	0.1 in	UL Style 2643	1.52 m 3.05 m 7.62 m 15.24 m 76.2 m 152.4 m	5 ft 10 ft 50 ft 250 ft 300 in 500 ft	7.57 mm	0.3 in	2	3 A	105 C	Copper Bare	0.05 mm	0.002 in	300 VDC	Polyester	27 AWG	Conductor 1 Tinned
Parlex USA LLC PSR1635-16	2.54 mm	0.1 in	UL Style 2643	1.52 m 3.05 m 7.62 m 76.2 m 152.4 m	5 ft 10 ft 250 ft 300 in 500 ft	43.18 mm	1.7 in	16	3 A	105 C	Copper Bare	0.05 mm	0.002 in	300 VDC	Polyester	27 AWG	Conductor 1 Tinned
Parlex USA LLC PSR1635-35	2.54 mm	0.1 in	UL Style 2643	152.4 m	500 ft	91.44 mm	3.6 in	35	3 A	105 C	Copper Bare	0.05 mm	0.002 in	300 VDC	Polyester	27 AWG	Conductor 1 Tinned
Parlex USA LLC PSR1635-20	2.54 mm	0.1 in	UL Style 2643	1.52 m 3.05 m 7.62 m 15.24 m 30.5 m 76.2 m 152.4 m	5 ft 10 ft 50 ft 100 ' 250 ft 300 in 500 ft	53.34 mm	2.1 "	20	3 A	105 C	Copper Bare	0.05 mm	0.002 in	300 VDC	Polyester	27 AWG	Conductor 1 Tinned
Parlex USA LLC PSR1635-19	2.54 mm	0.1 in	UL Style 2643	152.4 m	500 ft	50.8 mm	2 in	19	3 A	105 C	Copper Bare	0.05 mm	0.002 in	300 VDC	Polyester	27 AWG	Conductor 1 Tinned
Parlex USA LLC PSR1635-15	2.54 mm	0.1 in	UL Style 2643	1.52 m 7.62 m 15.24 m 76.2 m 152.4 m	5 ft 50 ft 250 ft 300 in 500 ft	40.64 mm	1.6 in	15	3 A	105 C	Copper Bare	0.05 mm	0.002 in	300 VDC	Polyester	27 AWG	Conductor 1 Tinned
Parlex USA LLC PSR1635-03	2.54 mm	0.1 in	UL Style 2643	1.52 m 15.24 m 76.2 m 152.4 m	5 ft 50 ft 250 ft 500 ft			3	3 A	105 C	Copper Bare	0.05 mm	0.002 in	300 VDC	Polyester	27 AWG	Conductor 1 Tinned	0.4 in	10.16 mm
Parlex USA LLC PSR1635-22	2.54 mm	0.1 in	UL Style 2643	152.4 m	500 ft	58.42 mm	2.3 in	22	3 A	105 C	Copper Bare	0.05 mm	0.002 in	300 VDC	Polyester	27 AWG	Conductor 1 Tinned
Parlex USA LLC PSR1635-06	2.54 mm	0.1 in	UL Style 2643	1.52 m 3.05 m 7.62 m 15.24 m 30.5 m 76.2 m 152.4 m	5 ft 10 ft 50 ft 100 ' 250 ft 300 in 500 ft	17.78 mm	0.7 in	6	3 A	105 C	Copper Bare	0.05 mm	0.002 in	300 VDC	Polyester	27 AWG	Conductor 1 Tinned

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.18
		1	$ 63.30
		1	$ 9.33
		1	$ 235.71
		1	$ 35.19
		5	$ 192.44
		5	$ 7.72
		5	$ 52.21
		5	$ 13.41
		5	$ 29.04
		10	$ 26.71
		10	$ 176.50
		10	$ 47.82
		10	$ 12.32
		10	$ 7.12
		25	$ 42.74
		25	$ 6.40
		25	$ 23.93
		25	$ 156.00
		25	$ 11.05
		50	$ 21.95
		50	$ 10.16
		50	$ 151.44
		50	$ 5.87
		50	$ 39.27
		100	$ 5.42
		100	$ 9.31
		100	$ 20.09
		100	$ 35.81
	Spool	1	$ 359.56
		5	$ 292.90
		10	$ 268.66

Description

General part information

PSR1635 Series

2 Conductor 0.100" (2.54mm) Flat Flex Cable
