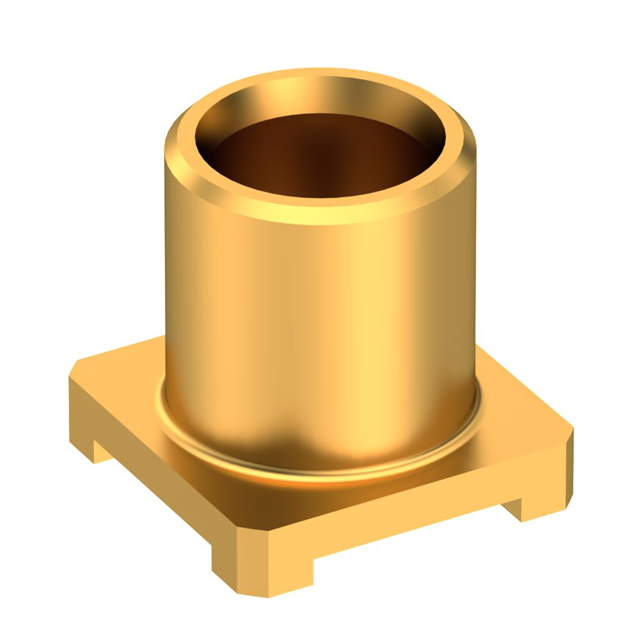

R213424800
ActiveRadiall USA, Inc.
MCX / STRAIGHT JACK RECEPTACLE F
Deep-Dive with AI
Search across all available documentation for this part.
R213424800
ActiveRadiall USA, Inc.
MCX / STRAIGHT JACK RECEPTACLE F
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R213424800 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 75 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.51 | |
| 10 | $ 10.20 | |||
| 25 | $ 9.81 | |||
| 50 | $ 9.42 | |||
| Digi-Reel® | 1 | $ 11.51 | ||
| 10 | $ 10.20 | |||
| 25 | $ 9.81 | |||
| 50 | $ 9.42 | |||
| Tape & Reel (TR) | 100 | $ 8.35 | ||
| 200 | $ 7.78 | |||
| 300 | $ 7.47 | |||
| 500 | $ 7.11 | |||
| 700 | $ 6.88 | |||
| 1000 | $ 6.65 | |||
Description
General part information
R21342 Series
MCX Connector Jack, Female Socket 75 Ohms Surface Mount Solder
Documents
Technical documentation and resources
No documents available
