R213426000W
ActiveRadiall USA, Inc.

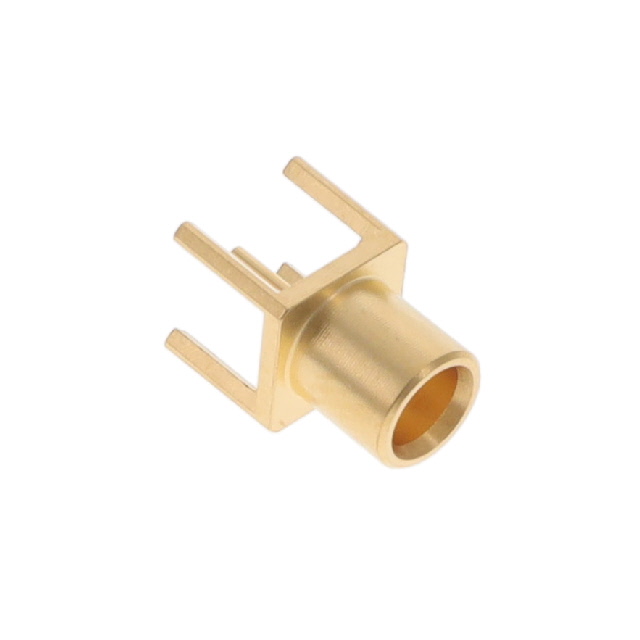

MCX / STRAIGHT JACK RECEPTACLE F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R213426000W
ActiveRadiall USA, Inc.
MCX / STRAIGHT JACK RECEPTACLE F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R213426000W |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polyetherimide (PEI) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 75 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.59 | |
| 10 | $ 7.62 | |||
| 25 | $ 7.32 | |||
| 50 | $ 7.03 | |||
| 100 | $ 6.88 | |||
Description
General part information
R21342 Series
MCX Connector Jack, Female Socket 75 Ohms Through Hole Solder
