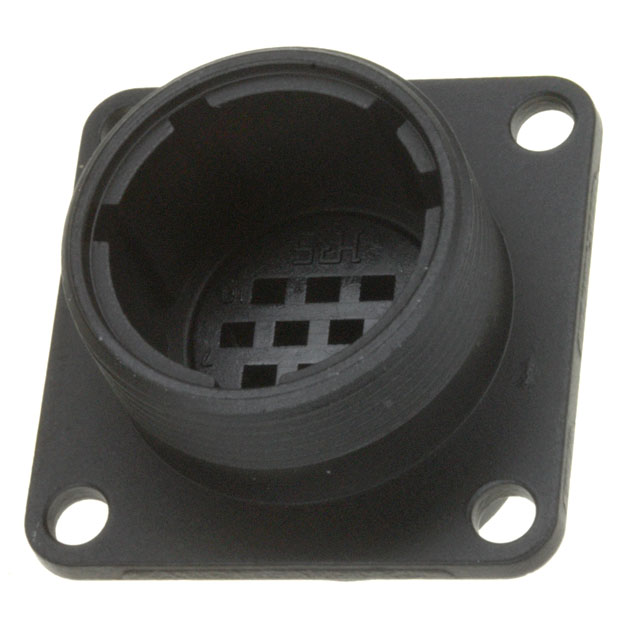

JR16WR-10PC(71)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT HSNG MALE 10POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JR16WR-10PC(71)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT HSNG MALE 10POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JR16WR-10PC(71)

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Housing Color	Black
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Shell Finish	Chrome
Shell Material	Aluminum Alloy
Shell Size - Insert	16
Shielding	Unshielded
Type	For Male Pins

JR16WR Series

Part	Orientation	Primary Material	Ingress Protection	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Applications	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Voltage Rating	Shell Material	Contact Finish - Mating	Insert Material	Shell Size - Insert	Contact Material	Color	Shielding	Mounting Feature	Material Flammability Rating	Contact Type	Note	Contact Size	Type	Contact Shape	Housing Color	Cable Opening [custom]	Cable Opening [custom]
Hirose Electric USA, Inc. JR16WR-7S(31)	Keyed	Metal	IP67/IP68 - Dust Tight Waterproof	7	-25 °C	85 °C	Black Chromium	Automotive Industrial Telecommunications	Receptacle Female Sockets	78.7 µin	2 µm	10 A	100 VAC 140 VDC	Aluminum Alloy	Silver	Phenol Formaldehyde (PF)	16	Copper Alloy	Black	Unshielded	Flange	UL94 V-0
Hirose Electric USA, Inc. JR16WR-10PC(71)	Keyed		IP67/IP68 - Dust Tight Waterproof	10	-25 °C	85 °C	Chrome		Receptacle Housing					Aluminum Alloy		Polycarbonate (PC)	16			Unshielded	Flange	UL94 V-0	Crimp	Contacts Not Included	1 mm	For Male Pins	Circular	Black
Hirose Electric USA, Inc. JR16WR-3PC	Keyed		IP67/IP68 - Dust Tight Waterproof		-25 °C	85 °C	Chrome		Receptacle Housing					Aluminum Alloy		Polycarbonate (PC)	16			Unshielded	Flange	UL94 V-0	Crimp	Contacts Not Included	1.6 mm	For Male Pins	Circular	Black
Hirose Electric USA, Inc. JR16WR-10S(71)	Keyed	Metal	IP67/IP68 - Dust Tight Waterproof	10	-25 °C	85 °C	Black Chromium	Automotive Industrial Telecommunications	Receptacle Female Sockets	78.7 µin	2 µm	5 A	100 VAC 140 VDC	Aluminum Alloy	Silver	Phenol Formaldehyde (PF)	16	Copper Alloy	Black		Flange	UL94 V-0							19.9 mm	0.783 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

JR16WR Series

10 Position Circular Connector Receptacle Housing Panel Mount
