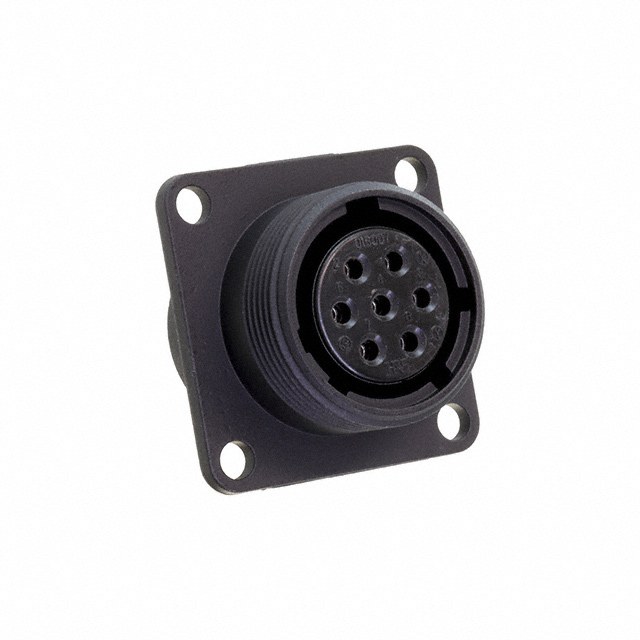

JR16WR-7S(31)

LTB

Hirose Electric USA, Inc.

CONN RCPT FMALE 7P SOLDER CUP

Deep-Dive with AI

DocumentsJR-W Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JR16WR-7S(31)

Applications	Telecommunications, Industrial, Automotive
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Phenol Formaldehyde (PF)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black Chromium
Shell Material	Aluminum Alloy
Shell Size - Insert	16
Shielding	Unshielded
Voltage Rating	100 VAC, 140 VDC

JR16WR Series

Part	Orientation	Primary Material	Ingress Protection	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Applications	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Voltage Rating	Shell Material	Contact Finish - Mating	Insert Material	Shell Size - Insert	Contact Material	Color	Shielding	Mounting Feature	Material Flammability Rating	Contact Type	Note	Contact Size	Type	Contact Shape	Housing Color	Cable Opening [custom]	Cable Opening [custom]
Hirose Electric USA, Inc. JR16WR-7S(31)	Keyed	Metal	IP67/IP68 - Dust Tight Waterproof	7	-25 °C	85 °C	Black Chromium	Automotive Industrial Telecommunications	Receptacle Female Sockets	78.7 µin	2 µm	10 A	100 VAC 140 VDC	Aluminum Alloy	Silver	Phenol Formaldehyde (PF)	16	Copper Alloy	Black	Unshielded	Flange	UL94 V-0
Hirose Electric USA, Inc. JR16WR-10PC(71)	Keyed		IP67/IP68 - Dust Tight Waterproof	10	-25 °C	85 °C	Chrome		Receptacle Housing					Aluminum Alloy		Polycarbonate (PC)	16			Unshielded	Flange	UL94 V-0	Crimp	Contacts Not Included	1 mm	For Male Pins	Circular	Black
Hirose Electric USA, Inc. JR16WR-3PC	Keyed		IP67/IP68 - Dust Tight Waterproof		-25 °C	85 °C	Chrome		Receptacle Housing					Aluminum Alloy		Polycarbonate (PC)	16			Unshielded	Flange	UL94 V-0	Crimp	Contacts Not Included	1.6 mm	For Male Pins	Circular	Black
Hirose Electric USA, Inc. JR16WR-10S(71)	Keyed	Metal	IP67/IP68 - Dust Tight Waterproof	10	-25 °C	85 °C	Black Chromium	Automotive Industrial Telecommunications	Receptacle Female Sockets	78.7 µin	2 µm	5 A	100 VAC 140 VDC	Aluminum Alloy	Silver	Phenol Formaldehyde (PF)	16	Copper Alloy	Black		Flange	UL94 V-0							19.9 mm	0.783 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.55
		10	$ 10.41
		25	$ 9.41
		50	$ 8.73
		100	$ 8.12
		250	$ 7.39

Description

General part information

JR16WR Series

7 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

JR-W Series Datasheet

Datasheet
