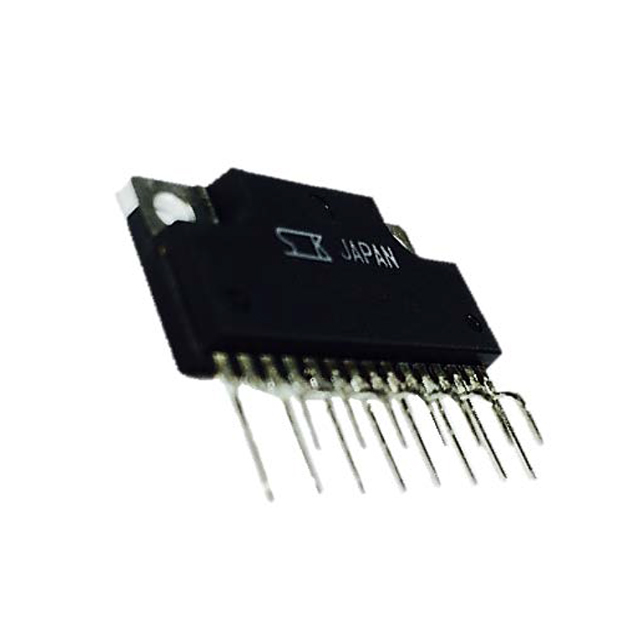

SLA5212

Active

Sanken Electric USA Inc.

MOSFET 6N-CH 35V 8A 15ZIP

Search across all available documentation for this part.

Active

Sanken Electric USA Inc.

MOSFET 6N-CH 35V 8A 15ZIP

Technical Specifications

Parameters and characteristics for this part

Specification	SLA5212

Configuration	6 N-Channel (3-Phase Bridge)
Current - Continuous Drain (Id) @ 25°C	8 A
Drain to Source Voltage (Vdss)	35 V
Mounting Type	Through Hole
Package / Case	15-SIP Exposed Tab, Formed Leads
Supplier Device Package	15-ZIP
Technology	MOSFET (Metal Oxide)

Part	Drain to Source Voltage (Vdss)	Supplier Device Package	Package / Case	Configuration	Current - Continuous Drain (Id) @ 25°C	Technology	Mounting Type	Package / Case	Current - Collector (Ic) (Max) [Max]	Operating Temperature	Voltage - Collector Emitter Breakdown (Max) [Max]
Sanken Electric USA Inc. SLA5212	35 V	15-ZIP	15-SIP Exposed Tab Formed Leads	6 N-Channel (3-Phase Bridge)	8 A	MOSFET (Metal Oxide)	Through Hole
Sanken Electric USA Inc. SLA5201	600 V	15-ZIP	15-SIP Exposed Tab Formed Leads	3 N 3 P-Channel	7 A	MOSFET (Metal Oxide)	Through Hole
Sanken Electric USA Inc. SLA5222		7-SIP	12-SIP				Through Hole	7 Leads	30 A	150 °C	600 V
Sanken Electric USA Inc. SLA5227		12-SIP	12-SIP Exposed Tab				Through Hole		30 A	150 °C	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Mosfet Array 35V 8A Through Hole 15-ZIP
