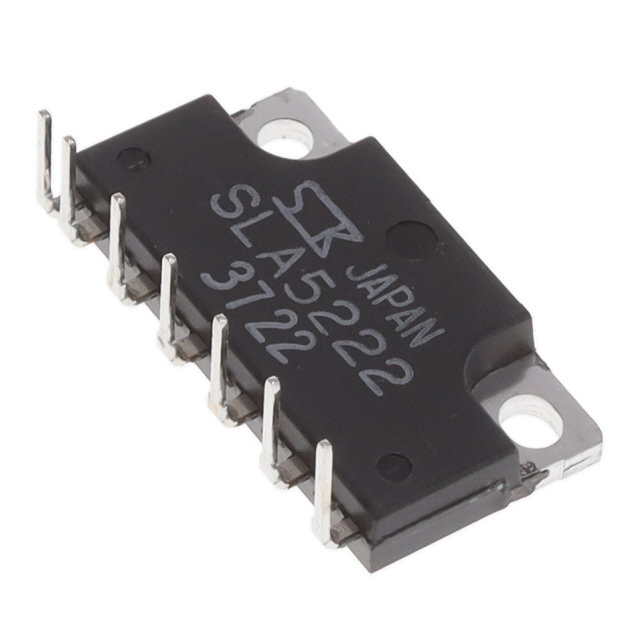

SLA5222

Active

Sanken Electric USA Inc.

IGBT 600V 30A PFC

Search across all available documentation for this part.

Active

Sanken Electric USA Inc.

IGBT 600V 30A PFC

Technical Specifications

Parameters and characteristics for this part

Specification	SLA5222

Current - Collector (Ic) (Max) [Max]	30 A
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	7 Leads
Package / Case	12-SIP
Supplier Device Package	7-SIP
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	Drain to Source Voltage (Vdss)	Supplier Device Package	Package / Case	Configuration	Current - Continuous Drain (Id) @ 25°C	Technology	Mounting Type	Package / Case	Current - Collector (Ic) (Max) [Max]	Operating Temperature	Voltage - Collector Emitter Breakdown (Max) [Max]
Sanken Electric USA Inc. SLA5212	35 V	15-ZIP	15-SIP Exposed Tab Formed Leads	6 N-Channel (3-Phase Bridge)	8 A	MOSFET (Metal Oxide)	Through Hole
Sanken Electric USA Inc. SLA5201	600 V	15-ZIP	15-SIP Exposed Tab Formed Leads	3 N 3 P-Channel	7 A	MOSFET (Metal Oxide)	Through Hole
Sanken Electric USA Inc. SLA5222		7-SIP	12-SIP				Through Hole	7 Leads	30 A	150 °C	600 V
Sanken Electric USA Inc. SLA5227		12-SIP	12-SIP Exposed Tab				Through Hole		30 A	150 °C	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT 600 V 30 A Through Hole 7-SIP
