ASMG010ZN113S17
ActiveSiretta Ltd

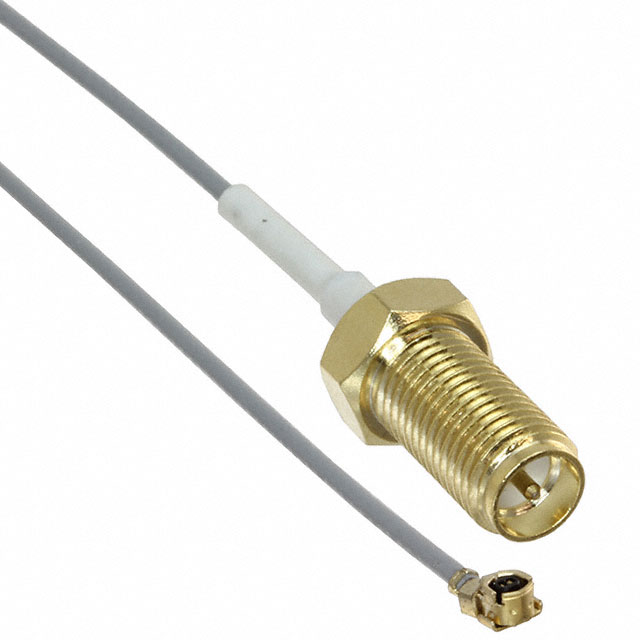

CBL ASSY U.FL-RPSMA JK-PL 3.937"
Deep-Dive with AI
Search across all available documentation for this part.
ASMG010ZN113S17
ActiveSiretta Ltd
CBL ASSY U.FL-RPSMA JK-PL 3.937"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMG010ZN113S17 |
|---|---|
| 1st Connector | Right Angle, RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | U.FL (UMCC) Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | 1.13mm OD Coaxial Cable |
| Color | Gray |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length [x] | 0.1 m |
| Length [x] | 3.937 in |
| Overall Impedance | 50 Ohms |
| Style | U.FL (UMCC) to RP-SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 7.66 | |
| 10 | $ 6.89 | |||
| 30 | $ 6.49 | |||
| 50 | $ 6.33 | |||
| 100 | $ 6.16 | |||
| 250 | $ 5.86 | |||
Description
General part information
ASMG010 Series
Cable Assembly Coaxial U.FL (UMCC) to RP-SMA 1.13mm OD Coaxial Cable 3.937" (100.00mm)
Documents
Technical documentation and resources
No documents available
