ASMG010X113S17

Active

Siretta Ltd

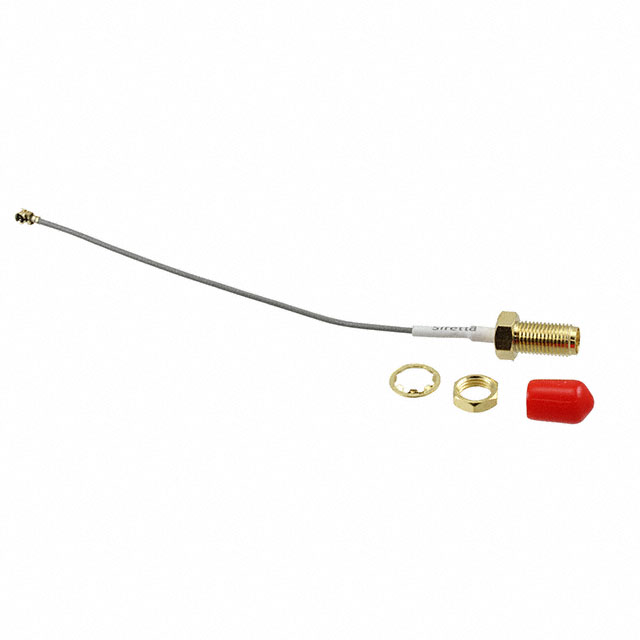

CBL ASSY U.FL-SMA JCK-PLG 3.937"

Search across all available documentation for this part.

Active

Siretta Ltd

CBL ASSY U.FL-SMA JCK-PLG 3.937"

Technical Specifications

Parameters and characteristics for this part

Specification	ASMG010X113S17

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	U.FL (UMCC) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	1.13mm OD Coaxial Cable
Color	Gray
Features	Shielded, Protective Cap
Frequency - Max [Max]	6000 MHz
Length [x]	0.1 m
Length [x]	3.937 in
Overall Impedance	50 Ohms
Style	U.FL (UMCC) to SMA

Part	1st Connector Mounting Type	2nd Connector	Overall Impedance	2nd Contact Gender	Style	Color	1st Contact Gender	Frequency - Max [Max]	Features	2nd Connector Mounting Type	Cable Type	Length [x]	Length [x]	1st Connector	1st Connector Mounting Feature
Siretta Ltd ASMG010ZN113S17	Free Hanging (In-Line)	U.FL (UMCC) Plug Right Angle	50 Ohms	Female	U.FL (UMCC) to RP-SMA	Gray	Male	6000 MHz	Shielded	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	0.1 m	3.937 in	Right Angle RP-SMA Jack
Siretta Ltd ASMG010X113S17	Panel Mount	U.FL (UMCC) Plug Right Angle	50 Ohms	Female	U.FL (UMCC) to SMA	Gray	Female	6000 MHz	Protective Cap Shielded	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	0.1 m	3.937 in	SMA Jack	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial U.FL (UMCC) to SMA 1.13mm OD Coaxial Cable 3.937" (100.00mm)
