1049080

Active

SICK, Inc.

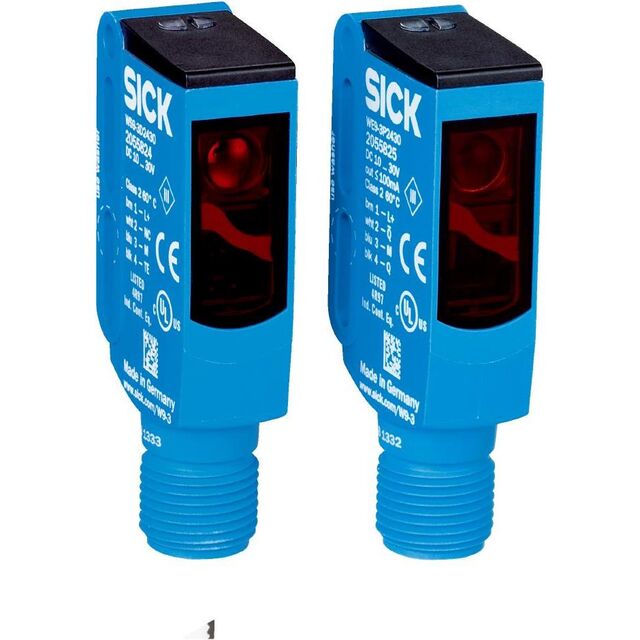

SENSOR THROUGH-BEAM 7M NPN

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR THROUGH-BEAM 7M NPN

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Connection Method	Light Source	Sensing Method	Response Time	Sensing Distance	Sensing Distance	Cable Length	Cable Length
SICK, Inc. 1049078	IP66 IP67 IP69K	30 VDC	10 VDC	-40 °C	60 °C	PNP - Dark-ON/Light-ON - Selectable	0 mm	0 "	275.591 "	7 m	3POS 4POS Cable with Connector M12	Red LED	Through-Beam	500 µs
SICK, Inc. 1049080	IP66 IP67 IP69K	30 VDC	10 VDC	-40 °C	60 °C	NPN					Connector M12	RED (650nm)	Through-Beam	500 µs	275.591 in	7 m
SICK, Inc. WSE9-3N1130		30 VDC	10 VDC	-40 °C	60 °C	NPN					Cable	RED (650nm)	Through-Beam	500 µs	393.701 in	10 m	78.74 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 310.81

General part information

Through-Beam Optical Sensor 275.591" (7m) NPN
