1049078

Active

SICK, Inc.

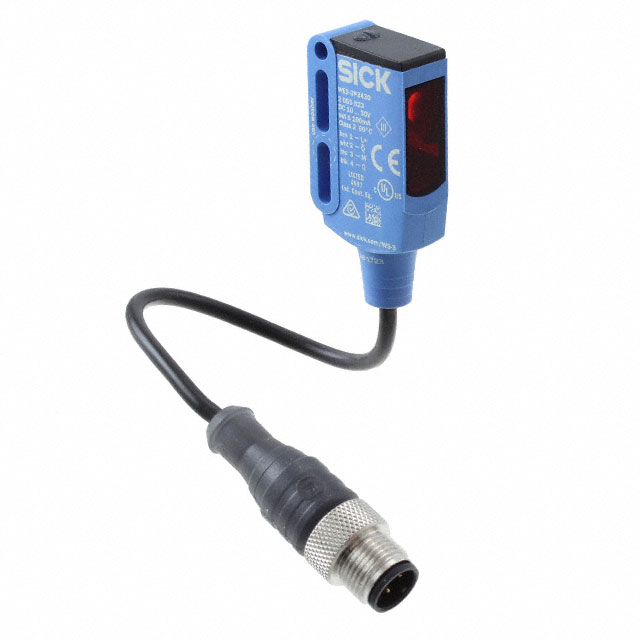

SENSOR THROUGH-BEAM 7M PNP

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR THROUGH-BEAM 7M PNP

Technical Specifications

Parameters and characteristics for this part

Specification	1049078

Connection Method	3POS, Cable with Connector, M12, 4POS
Ingress Protection	IP69K, IP66, IP67
Light Source	Red LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	500 µs
Sensing Distance [Max]	275.591 "
Sensing Distance [Max]	7 m
Sensing Distance [Min]	0 mm
Sensing Distance [Min]	0 "
Sensing Method	Through-Beam
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Connection Method	Light Source	Sensing Method	Response Time	Sensing Distance	Sensing Distance	Cable Length	Cable Length
SICK, Inc. 1049078	IP66 IP67 IP69K	30 VDC	10 VDC	-40 °C	60 °C	PNP - Dark-ON/Light-ON - Selectable	0 mm	0 "	275.591 "	7 m	3POS 4POS Cable with Connector M12	Red LED	Through-Beam	500 µs
SICK, Inc. 1049080	IP66 IP67 IP69K	30 VDC	10 VDC	-40 °C	60 °C	NPN					Connector M12	RED (650nm)	Through-Beam	500 µs	275.591 in	7 m
SICK, Inc. WSE9-3N1130		30 VDC	10 VDC	-40 °C	60 °C	NPN					Cable	RED (650nm)	Through-Beam	500 µs	393.701 in	10 m	78.74 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Through-Beam Optical Sensor 0" ~ 275.591" (0m ~ 7m) PNP - Dark-ON/Light-ON - Selectable
