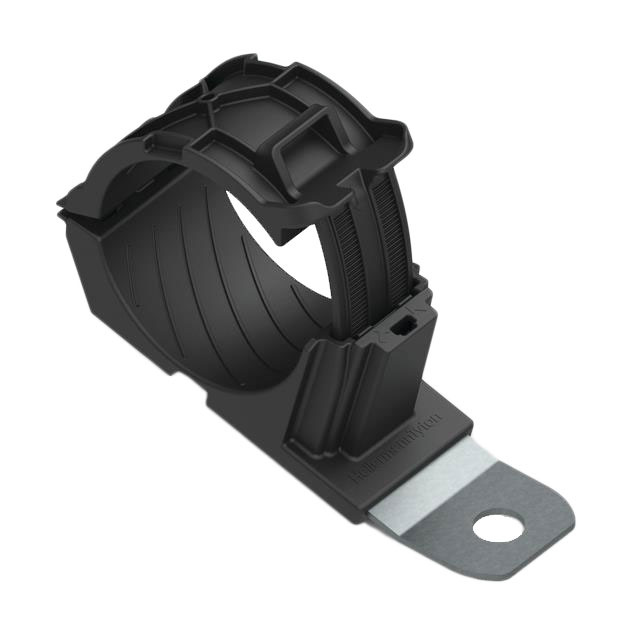

151-01509

Active

HELLERMANNTYTON

CBL CLAMP P-TYPE BLACK FASTENER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & Securing Datasheet

151-01509

Active

HELLERMANNTYTON

CBL CLAMP P-TYPE BLACK FASTENER

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & Securing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	151-01509

Bundle Center to Mounting Center [x]	60.9 mm
Bundle Center to Mounting Center [x]	2.398 in
Color	Black
Features	Heat Stabilized, UV Resistant, Slotted for Cable Tie, Chemical Resistant, Impact Resistant
Length [x]	4.24 in
Length [x]	107.7 mm
Material	Polyamide (PA66), Steel, Nylon 6/6
Material Flammability Rating	UL94 HB
Mounting Type	Fastener
Opening Size [Max] [z]	2 in
Opening Size [Max] [z]	50.8 mm
Opening Size [Min] [z]	35.31 mm
Opening Size [Min] [z]	1.39 in
Panel Hole Size	8.31 mm
Panel Hole Size	0.327 in
Screw Size	M8
Type	Clamp, P-Type
Type Attributes	15 °
Type Attributes	Ratchet, Ribbed
Width [y]	1.374 in
Width [y]	34.9 mm

151-01 Series

Non-Isolated DC/DC Converters A-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, , -6000V DC HVout, 30W, Thru-hole mount, Regulated, I10 Interface 0 to +10 VDC Monitors/Controls, Mu Metal shield, Heatsink

...

Part	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Length	Length	Mounting Type	Material	Type	Type Attributes	Type Attributes	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Panel Hole Size	Panel Hole Size	Width [y]	Width [y]	Features	Color	Material Flammability Rating	Screw Size	Opening Size [Min]	Opening Size [Max]	Opening Size [Max]	Opening Size [Min]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Length [x]	Length [x]	Opening Size [Max] [z]	Opening Size [Max] [diameter]	Opening Size [Max] [diameter]	Opening Size [Min] [diameter]	Opening Size [Min] [diameter]	Height [z]	Height [z]	Panel Hole Size	Panel Hole Size [y]	Panel Hole Size [x]	Panel Hole Size [x]	Panel Hole Size [y]	Width [x]	Width [x]	Panel Thickness [Min]	Panel Thickness [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	For Use With/Related Products [Max]	For Use With/Related Products [Max]
HELLERMANNTYTON 151-01987	1.417 in	0.764 in	36 mm	19.4 mm	4.075 "	103.5 mm	Fastener	Nylon 6/6 Polyamide (PA66) Steel	Clamp P-Type	15 °	Ratchet Ribbed	2.45 in	62.23 mm	8.31 mm	0.327 in	1.374 in	34.9 mm	Heat Stabilized Impact Resistant UV Resistant	Black	UL94 HB	M6
HELLERMANNTYTON 151-01932					4.063 in	103.2 mm	Fastener	Nylon 6/6 Polyamide (PA66) Steel	Clamp P-Type	30 °	Ratchet Ribbed	2.85 in	72.4 mm	8.31 mm	0.327 in	1.374 in	34.9 mm	Heat Stabilized Impact Resistant UV Resistant	Black	UL94 HB	M8	6.2 mm	13.7 mm	0.539 in	0.244 in
HELLERMANNTYTON 151-01390					3.272 in	83.1 mm	Fastener	Nylon 6/6 Polyamide (PA66) Steel	Clamp P-Type	180 °	Ratchet Ribbed			10.29 mm	0.405 in	1.374 in	34.9 mm	Chemical Resistant Heat Stabilized Impact Resistant Slotted for Cable Tie UV Resistant	Black	UL94 HB	M10					0.77 in	0.47 in	11.94 mm	19.56 mm	2.079 in	52.8 mm
HELLERMANNTYTON 151-01509	2 in	1.39 in		35.31 mm			Fastener	Nylon 6/6 Polyamide (PA66) Steel	Clamp P-Type	15 °	Ratchet Ribbed			8.31 mm	0.327 in	1.374 in	34.9 mm	Chemical Resistant Heat Stabilized Impact Resistant Slotted for Cable Tie UV Resistant	Black	UL94 HB	M8									2.398 in	60.9 mm	4.24 in	107.7 mm	50.8 mm
HELLERMANNTYTON 151-01722					0.67 in	17.02 mm	Fir Tree	Polyamide (PA66) Nylon 6/6 Halogen Free	C-Type Clip		Open			0.25 in				Heat Stabilized Impact Modified UV Stabilized	Black	UL94 HB															0.31 in	7.87 mm	6.1 mm	0.24 in	29.21 mm	1.15 in	6.35 mm
HELLERMANNTYTON 151-01713					0.67 in	17.02 mm	Fir Tree	Polyamide (PA66) Nylon 6/6 Halogen Free	C-Type Clip		Open			0.25 in				Heat Stabilized Impact Modified UV Stabilized	Black	UL94 HB		0.22 in 5.59 mm	0.27 in 6.86 mm																27.69 mm	1.09 in	6.35 mm
HELLERMANNTYTON 151-01951					0.44 ft	134.1 mm	Fastener	Nylon 6/6 Polyamide (PA66) Steel	Clamp P-Type	180 °	Ratchet Ribbed	4.08 in	103.63 mm	6.5 mm	0.256 in	1.374 in	34.9 mm	Heat Stabilized Impact Resistant UV Resistant	Black	UL94 HB	M6	12.7 mm	19.5 mm	0.768 in	0.5 in
HELLERMANNTYTON 151-01108							Cupped Fir Tree	Polyamide (PA66) Nylon 6/6	Clip Connector									Heat Stabilized Impact Resistant	Black													1.14 in	28.96 mm						20.35 mm	0.801 in		12.7 mm	6.1 mm	0.24 in	0.5 in	17.63 mm	0.694 "	0.02 " 0.51 mm	0.24 in 6.1 mm
HELLERMANNTYTON 151-01611							Cable Tie	Polyamide (PA66) Nylon 6/6	Single Opening										Natural																															17.3 mm	0.68 in	0.71 in	18 mm	25.9 mm	1.02 in	11.5 mm	0.45 "
HELLERMANNTYTON 151-01297

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2080	$ 2.56
