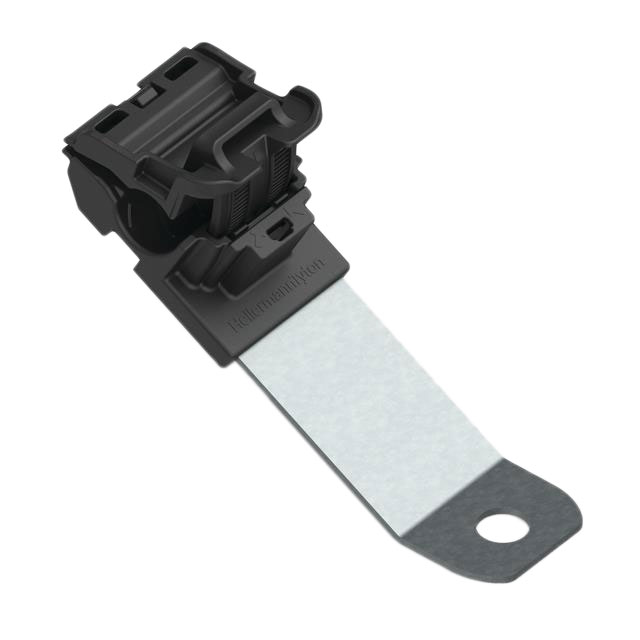

151-01932 - 151-01431

151-01932

Active
HELLERMANNTYTON

CBL CLAMP P-TYPE BLACK FASTENER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & SecuringDatasheet
151-01932 - 151-01431

151-01932

Active
HELLERMANNTYTON

CBL CLAMP P-TYPE BLACK FASTENER

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & SecuringDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification151-01932
Bundle Center to Mounting Center72.4 mm
Bundle Center to Mounting Center2.85 in
ColorBlack
FeaturesUV Resistant, Heat Stabilized, Impact Resistant
Length4.063 in
Length103.2 mm
MaterialPolyamide (PA66), Steel, Nylon 6/6
Material Flammability RatingUL94 HB
Mounting TypeFastener
Opening Size [Max]13.7 mm
Opening Size [Max]0.539 in
Opening Size [Min]6.2 mm
Opening Size [Min]0.244 in
Panel Hole Size8.31 mm
Panel Hole Size0.327 in
Screw SizeM8
TypeClamp, P-Type
Type AttributesRibbed, Ratchet
Type Attributes30 °
Width [y]1.374 in
Width [y]34.9 mm

151-01 Series

Non-Isolated DC/DC Converters A-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, , -6000V DC HVout, 30W, Thru-hole mount, Regulated, I10 Interface 0 to +10 VDC Monitors/Controls, Mu Metal shield, Heatsink

...
PartOpening Size [Max] [z]Opening Size [Min] [z]Opening Size [Max] [z]Opening Size [Min] [z]LengthLengthMounting TypeMaterialTypeType AttributesType AttributesBundle Center to Mounting CenterBundle Center to Mounting CenterPanel Hole SizePanel Hole SizeWidth [y]Width [y]FeaturesColorMaterial Flammability RatingScrew SizeOpening Size [Min]Opening Size [Max]Opening Size [Max]Opening Size [Min]Opening Size [Max] [custom]Opening Size [Min] [custom]Opening Size [Min] [custom]Opening Size [Max] [custom]Bundle Center to Mounting Center [x]Bundle Center to Mounting Center [x]Length [x]Length [x]Opening Size [Max] [z]Opening Size [Max] [diameter]Opening Size [Max] [diameter]Opening Size [Min] [diameter]Opening Size [Min] [diameter]Height [z]Height [z]Panel Hole SizePanel Hole Size [y]Panel Hole Size [x]Panel Hole Size [x]Panel Hole Size [y]Width [x]Width [x]Panel Thickness [Min]Panel Thickness [Max]Size / Dimension [z]Size / Dimension [z]Size / Dimension [y]Size / Dimension [y]Size / Dimension [x]Size / Dimension [x]For Use With/Related Products [Max]For Use With/Related Products [Max]
HELLERMANNTYTON
151-01987
1.417 in
0.764 in
36 mm
19.4 mm
4.075 "
103.5 mm
Fastener
Nylon 6/6
Polyamide (PA66)
Steel
Clamp
P-Type
15 °
Ratchet
Ribbed
2.45 in
62.23 mm
8.31 mm
0.327 in
1.374 in
34.9 mm
Heat Stabilized
Impact Resistant
UV Resistant
Black
UL94 HB
M6
HELLERMANNTYTON
151-01932
4.063 in
103.2 mm
Fastener
Nylon 6/6
Polyamide (PA66)
Steel
Clamp
P-Type
30 °
Ratchet
Ribbed
2.85 in
72.4 mm
8.31 mm
0.327 in
1.374 in
34.9 mm
Heat Stabilized
Impact Resistant
UV Resistant
Black
UL94 HB
M8
6.2 mm
13.7 mm
0.539 in
0.244 in
HELLERMANNTYTON
151-01390
3.272 in
83.1 mm
Fastener
Nylon 6/6
Polyamide (PA66)
Steel
Clamp
P-Type
180 °
Ratchet
Ribbed
10.29 mm
0.405 in
1.374 in
34.9 mm
Chemical Resistant
Heat Stabilized
Impact Resistant
Slotted for Cable Tie
UV Resistant
Black
UL94 HB
M10
0.77 in
0.47 in
11.94 mm
19.56 mm
2.079 in
52.8 mm
HELLERMANNTYTON
151-01509
2 in
1.39 in
35.31 mm
Fastener
Nylon 6/6
Polyamide (PA66)
Steel
Clamp
P-Type
15 °
Ratchet
Ribbed
8.31 mm
0.327 in
1.374 in
34.9 mm
Chemical Resistant
Heat Stabilized
Impact Resistant
Slotted for Cable Tie
UV Resistant
Black
UL94 HB
M8
2.398 in
60.9 mm
4.24 in
107.7 mm
50.8 mm
HELLERMANNTYTON
151-01722
0.67 in
17.02 mm
Fir Tree
Polyamide (PA66)
Nylon 6/6
Halogen Free
C-Type
Clip
Open
0.25 in
Heat Stabilized
Impact Modified
UV Stabilized
Black
UL94 HB
0.31 in
7.87 mm
6.1 mm
0.24 in
29.21 mm
1.15 in
6.35 mm
HELLERMANNTYTON
151-01713
0.67 in
17.02 mm
Fir Tree
Polyamide (PA66)
Nylon 6/6
Halogen Free
C-Type
Clip
Open
0.25 in
Heat Stabilized
Impact Modified
UV Stabilized
Black
UL94 HB
0.22 in
5.59 mm
0.27 in
6.86 mm
27.69 mm
1.09 in
6.35 mm
HELLERMANNTYTON
151-01951
0.44 ft
134.1 mm
Fastener
Nylon 6/6
Polyamide (PA66)
Steel
Clamp
P-Type
180 °
Ratchet
Ribbed
4.08 in
103.63 mm
6.5 mm
0.256 in
1.374 in
34.9 mm
Heat Stabilized
Impact Resistant
UV Resistant
Black
UL94 HB
M6
12.7 mm
19.5 mm
0.768 in
0.5 in
HELLERMANNTYTON
151-01108
Cupped
Fir Tree
Polyamide (PA66)
Nylon 6/6
Clip
Connector
Heat Stabilized
Impact Resistant
Black
1.14 in
28.96 mm
20.35 mm
0.801 in
12.7 mm
6.1 mm
0.24 in
0.5 in
17.63 mm
0.694 "
0.02 "
0.51 mm
0.24 in
6.1 mm
HELLERMANNTYTON
151-01611
Cable Tie
Polyamide (PA66)
Nylon 6/6
Single Opening
Natural
17.3 mm
0.68 in
0.71 in
18 mm
25.9 mm
1.02 in
11.5 mm
0.45 "
HELLERMANNTYTON
151-01297

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 2200$ 3.00
