S1101

Active

LAPP

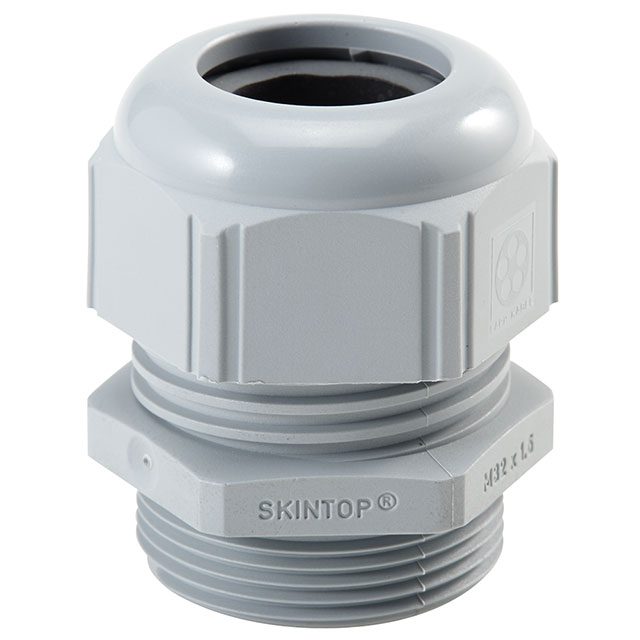

CABLE GLAND 19-25.4MM 1" NPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S1101

Active

LAPP

CABLE GLAND 19-25.4MM 1" NPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S1101

Color	Gray
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	25.4 mm
Outside Cable Diameter (Max) [Max] [diameter]	1 "
Outside Cable Diameter (Min) [Min] [diameter]	19 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.748 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	1" NPT
Type	Cable Gland

- Series

Part	Material	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Thread Length	Thread Length	Color	Ingress Protection	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
LAPP S1134	Polyamide (PA) Nylon	100 °C	-40 °C	0.709 in	18.01 mm	Cable Gland	3/4 NPT	0.512 in	13 mm	0.591 in	15 mm	Gray
LAPP S1609	Polyamide (PA) Nylon	100 °C	-40 °C	0.276 in	7 mm	Cable Gland	M16x1.5			0.315 in	8 mm	Gray	IP68 IP69 NEMA 1 NEMA 12	3.5 mm	0.138 in
LAPP S1148	Polyamide (PA) Nylon	100 °C	-40 °C			Cable Gland	PG48	1.535 in		0.551 in	14 mm	Gray				39 mm	44 mm	1.732 in
LAPP S1101	Polyamide (PA) Nylon	100 °C	-40 °C	1 "	25.4 mm	Cable Gland	1" NPT	0.748 in		0.591 in	15 mm	Gray				19 mm
LAPP S1636	Polyamide (PA) Nylon	100 °C	-40 °C	1.142 in	29 mm	Cable Gland	M50x1.5	0.945 in		0.472 in	12 mm	Gray	IP68 IP69 NEMA 1 NEMA 12			24 mm
LAPP S2134	Polyamide (PA) Nylon	100 °C	-40 °C	0.709 in	18.01 mm	Cable Gland	3/4 NPT	0.512 in	13 mm	0.591 in	15 mm	Black
LAPP S1112	Polyamide (PA) Nylon	100 °C	-40 °C	0.472 in	12 mm	Cable Gland	1/2" NPT			0.591 in	15 mm	Gray		5 mm	0.197 in
LAPP S1642	Polyamide (PA) Nylon	100 °C	-40 °C	1.535 in	39 mm	Cable Gland				0.472 in	12 mm	Gray	IP68 IP69 NEMA 1 NEMA 12	28 mm	1.102 in
LAPP S1236	Polyamide (PA) Nylon	100 °C	-40 °C	1.024 "	26 mm	Cable Gland	PG36			0.512 in	13 mm	Gray
LAPP S1116	Polyamide (PA) Nylon	100 °C	-40 °C			Cable Gland	PG16	0.354 in		0.394 in	10 mm	Gray				9 mm	14 mm	0.551 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.17
		10	$ 9.16
		25	$ 8.63
		50	$ 8.41
		100	$ 8.18
		250	$ 7.30
		500	$ 6.86
		1000	$ 6.06

Description

General part information

- Series

Cable Gland Polyamide (PA), Nylon 1" NPT Gray

Documents

Technical documentation and resources
