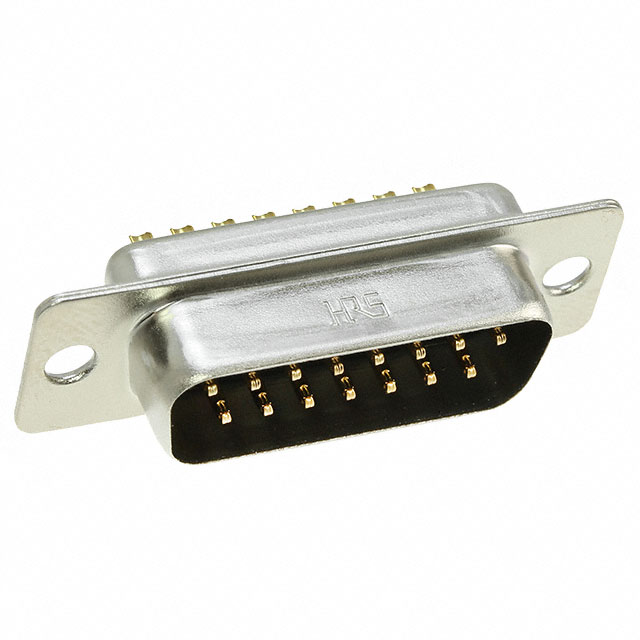

HDAB-15P(05) - HDAB-15P(05)

HDAB-15P(05)

Active
Hirose Electric USA, Inc.

SOLDER TYPE D-SUBMINIATURE CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
HDAB-15P(05) - HDAB-15P(05)

HDAB-15P(05)

Active
Hirose Electric USA, Inc.

SOLDER TYPE D-SUBMINIATURE CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationHDAB-15P(05)
ColorBlack
Connector StyleD-Sub
Connector TypePlug, Male Pins
Contact FinishGold
Contact FormStamped
Contact MaterialCopper Alloy
Contact TypeSignal
Current Rating (Amps)3 A
Dielectric MaterialPolybutylene Terephthalate (PBT), Glass Filled
Flange FeatureHousing/Shell (Unthreaded)
Material Flammability RatingUL94 V-0
Number of Positions15
Number of Rows2
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout2
Voltage Rating400 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 7.80
10$ 5.98
25$ 5.40
40$ 5.13
80$ 4.76
230$ 4.26
440$ 3.99
945$ 3.70
2400$ 3.39
NewarkEach 1$ 11.18
240$ 9.86

Description

General part information

HDAB Series

15 Position D-Sub Plug, Male Pins Connector
