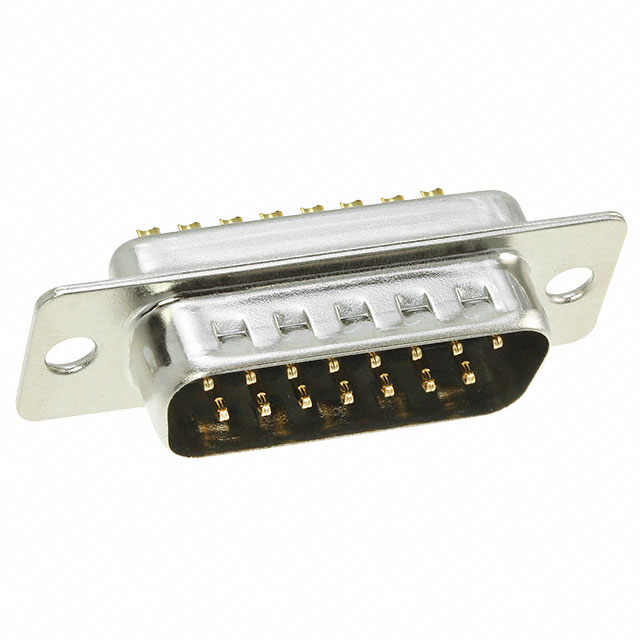

HDAB-15PF(05)
ActiveHirose Electric USA, Inc.
CONN D-SUB PLUG 15POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDAB-15PF(05)
ActiveHirose Electric USA, Inc.
CONN D-SUB PLUG 15POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDAB-15PF(05) |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.80 | |
| 10 | $ 5.98 | |||
| 25 | $ 5.40 | |||
| 40 | $ 5.13 | |||
| 80 | $ 4.76 | |||
| 230 | $ 4.26 | |||
| 440 | $ 3.99 | |||
| 945 | $ 3.70 | |||
| 2400 | $ 3.39 | |||
Description
General part information
HDAB Series
15 Position D-Sub Plug, Male Pins Connector
