3280-9SG-324

Active

Conxall/Switchcraft

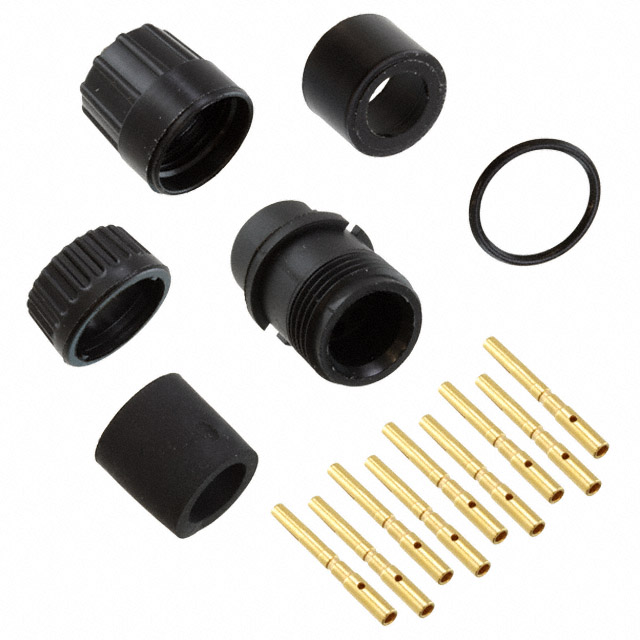

CONN PLUG FMALE 9POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMulti-Con-X Connectors Datasheet

3280-9SG-324

Active

Conxall/Switchcraft

CONN PLUG FMALE 9POS GOLD CRIMP

Deep-Dive with AI

DocumentsMulti-Con-X Connectors Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3280-9SG-324

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	6.86 mm
Cable Opening [Max] [diameter]	0.27 in
Cable Opening [Min] [diameter]	0.24 in
Cable Opening [Min] [diameter]	6.1 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5.6 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

3280-9S Series

Part	Voltage Rating	Backshell Material, Plating	Mounting Type	Number of Positions	Termination	Contact Material	Connector Type	Shielding	Current Rating (Amps)	Ingress Protection	Orientation	Fastening Type	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Features	Primary Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 3280-9SG-515	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold	0.15 in 0.17 in	3.81 mm 4.32 mm	Black	-40 °C	115 °C	Backshell Cable Clamp	Plastic
Conxall/Switchcraft 3280-9SG-324	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold			Black	-40 °C	115 °C	Backshell	Plastic	0.24 in	6.86 mm	6.1 mm	0.27 in
Conxall/Switchcraft 3280-9SG-524	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold			Black	-40 °C	115 °C	Backshell Cable Clamp	Plastic	0.24 in	6.86 mm	6.1 mm	0.27 in
Conxall/Switchcraft 3280-9SG-518	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold			Black	-40 °C	115 °C	Backshell Cable Clamp	Plastic					4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3280-9SG-528	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold			Black	-40 °C	115 °C	Backshell Cable Clamp	Plastic	0.28 in	7.37 mm	7.11 mm	0.29 in
Conxall/Switchcraft 3280-9SG-321	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold			Black	-40 °C	115 °C	Backshell	Plastic	0.21 in	5.84 mm	5.33 mm	0.23 in
Conxall/Switchcraft 3280-9SG-328	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold			Black	-40 °C	115 °C	Backshell	Plastic	0.28 in	7.37 mm	7.11 mm	0.29 in
Conxall/Switchcraft 3280-9SG-318	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold			Black	-40 °C	115 °C	Backshell	Plastic					4.57 mm	0.18 in	0.2 in	5.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 12.31
		300	$ 11.22
		500	$ 10.50
		1000	$ 9.63

Description

General part information

3280-9S Series

9 Position Circular Connector Plug, Female Sockets Crimp
