3280-9SG-328

Active

Conxall/Switchcraft

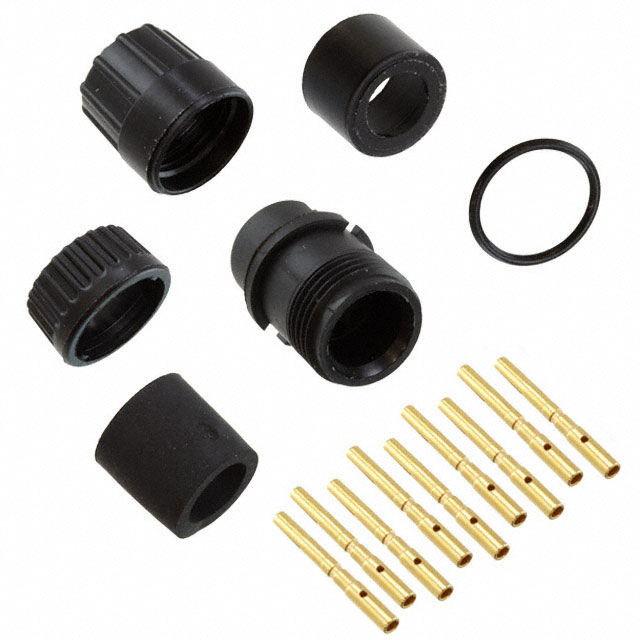

CONN PLUG FMALE 9POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Multi-Con-X Connectors

3280-9SG-328

Active

Conxall/Switchcraft

CONN PLUG FMALE 9POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet Multi-Con-X Connectors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3280-9SG-328

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	7.37 mm
Cable Opening [Max] [diameter]	0.29 in
Cable Opening [Min] [diameter]	7.11 mm
Cable Opening [Min] [diameter]	0.28 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5.6 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

3280-9S Series

Part	Voltage Rating	Backshell Material, Plating	Mounting Type	Number of Positions	Termination	Contact Material	Connector Type	Shielding	Current Rating (Amps)	Ingress Protection	Orientation	Fastening Type	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Features	Primary Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 3280-9SG-515	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold	0.15 in 0.17 in	3.81 mm 4.32 mm	Black	-40 °C	115 °C	Backshell Cable Clamp	Plastic
Conxall/Switchcraft 3280-9SG-324	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold			Black	-40 °C	115 °C	Backshell	Plastic	0.24 in	6.86 mm	6.1 mm	0.27 in
Conxall/Switchcraft 3280-9SG-524	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold			Black	-40 °C	115 °C	Backshell Cable Clamp	Plastic	0.24 in	6.86 mm	6.1 mm	0.27 in
Conxall/Switchcraft 3280-9SG-518	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold			Black	-40 °C	115 °C	Backshell Cable Clamp	Plastic					4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3280-9SG-528	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold			Black	-40 °C	115 °C	Backshell Cable Clamp	Plastic	0.28 in	7.37 mm	7.11 mm	0.29 in
Conxall/Switchcraft 3280-9SG-321	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold			Black	-40 °C	115 °C	Backshell	Plastic	0.21 in	5.84 mm	5.33 mm	0.23 in
Conxall/Switchcraft 3280-9SG-328	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold			Black	-40 °C	115 °C	Backshell	Plastic	0.28 in	7.37 mm	7.11 mm	0.29 in
Conxall/Switchcraft 3280-9SG-318	600 V	Nylon Polyamide (PA)	Free Hanging (In-Line)	9	Crimp	Brass	Female Sockets Plug	Unshielded	5.6 A	Weathertight	Keyed	Bayonet Lock	Gold			Black	-40 °C	115 °C	Backshell	Plastic					4.57 mm	0.18 in	0.2 in	5.08 mm
