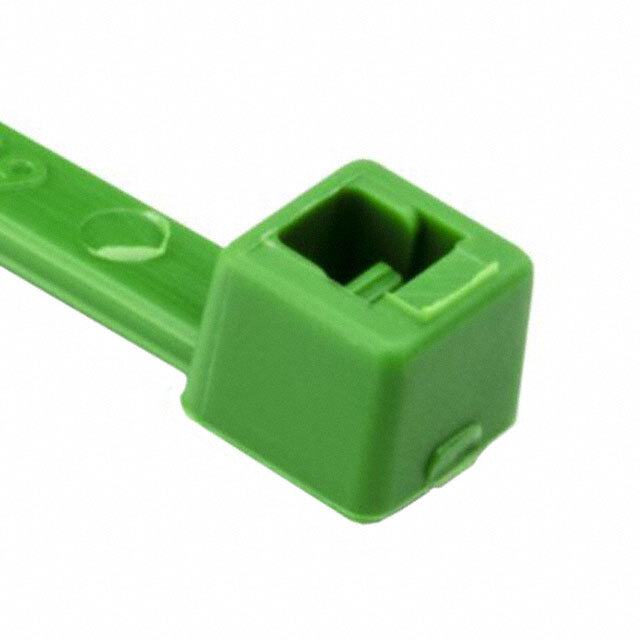

T30R5C2

Active

HELLERMANNTYTON

CBL TIE LOCKING GREEN 30LB 5.83"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & Securing Datasheet

T30R5C2

Active

HELLERMANNTYTON

CBL TIE LOCKING GREEN 30LB 5.83"

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & Securing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T30R5C2

Bundle Diameter	1.38 in
Bundle Diameter	35 mm
Color	Green
Length - Actual [x]	148 mm
Length - Actual [x]	5.83 in
Length - Actual [x]	0.486 ft
Length - Approximate	5.75 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Tensile Strength	13.61 kg
Tensile Strength	30 lbs
Width [x]	0.142 in
Width [x]	3.61 mm
Wire/Cable Tie Type	Standard, Locking

T30R Series

Part	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Wire/Cable Tie Type	Material	Color	Features	Width [x]	Width [x]	Length - Approximate	Bundle Diameter	Bundle Diameter	Tensile Strength	Tensile Strength	Mounting Type
HELLERMANNTYTON T30R0VOC2	148 mm	5.83 in	0.486 ft	Locking Standard	Polyamide (PA66) Nylon 6/6	Black	Flame Retardant	0.142 in	3.61 mm	5.75 in	1.38 in	35 mm	13.61 kg	30 lbs	Free Hanging (In-Line)
HELLERMANNTYTON T30R0HSC2	148 mm	5.83 in	0.486 ft	Locking Standard	Polyamide (PA66) Nylon 6/6	Black	Heat Stabilized	0.142 in	3.61 mm	5.75 in	1.38 in	35 mm	13.61 kg	30 lbs	Free Hanging (In-Line)
HELLERMANNTYTON T30R5C2	148 mm	5.83 in	0.486 ft	Locking Standard	Polyamide (PA66) Nylon 6/6	Green		0.142 in	3.61 mm	5.75 in	1.38 in	35 mm	13.61 kg	30 lbs	Free Hanging (In-Line)
HELLERMANNTYTON T30R10C2	148 mm	5.83 in	0.486 ft	Locking Standard	Polyamide (PA66) Nylon 6/6	White		0.142 in	3.61 mm	5.75 in	1.38 in	35 mm	13.61 kg	30 lbs	Free Hanging (In-Line)
HELLERMANNTYTON T30R4C2	148 mm	5.83 in	0.486 ft	Locking Standard	Polyamide (PA66) Nylon 6/6	Yellow		0.142 in	3.61 mm	5.75 in	1.38 in	35 mm	13.61 kg	30 lbs	Free Hanging (In-Line)
HELLERMANNTYTON T30R9HSM4	148 mm	5.83 in	0.486 ft	Locking Standard	Polyamide (PA66) Nylon 6/6	Natural	Halogen Free Heat Stabilized	0.142 in	3.61 mm	5.75 in	1.38 in	35 mm	13.61 kg	30 lbs	Free Hanging (In-Line)
HELLERMANNTYTON T30R7C2	148 mm	5.83 in	0.486 ft	Locking Standard	Polyamide (PA66) Nylon 6/6	Violet		0.142 in	3.61 mm	5.75 in	1.38 in	35 mm	13.61 kg	30 lbs	Free Hanging (In-Line)
HELLERMANNTYTON T30R10M4	148 mm	5.83 in	0.486 ft	Locking Standard	Polyamide (PA66) Nylon 6/6	White		0.142 in	3.61 mm	5.75 in	1.38 in	35 mm	13.61 kg	30 lbs	Free Hanging (In-Line)
HELLERMANNTYTON T30R3M4	148 mm	5.83 in	0.486 ft	Locking Standard	Polyamide (PA66) Nylon 6/6			0.142 in	3.61 mm	5.75 in	1.38 in	35 mm	13.61 kg	30 lbs	Free Hanging (In-Line)
HELLERMANNTYTON T30R8C2	148 mm	5.83 in	0.486 ft	Locking Standard	Polyamide (PA66) Nylon 6/6	Gray		0.142 in	3.61 mm	5.75 in	1.38 in	35 mm	13.61 kg	30 lbs	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 0.19
