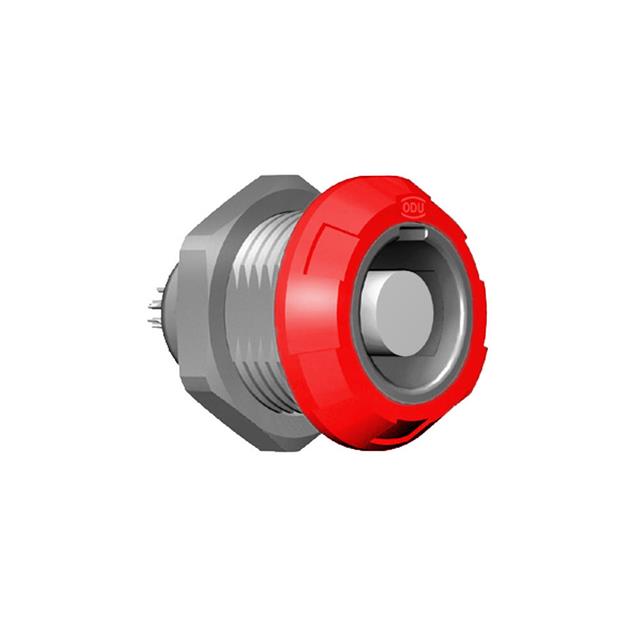

G11MA7-P04LJG0-0020

Active

ODU

CONN RCPT FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G11MA7-P04LJG0-0020

Active

ODU

CONN RCPT FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G11MA7-P04LJG0-0020

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Gray, Red
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	A
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded

G11MA7-P Series

Part	Contact Finish - Mating	Fastening Type	Insert Material	Contact Material	Shell Size - Insert	Shell Material	Number of Positions	Current Rating (Amps)	Connector Type	Mounting Feature	Applications	Color	Orientation	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Ingress Protection
ODU G11MA7-P02LPH0-0030	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	Brass	1	Polysulfone (PSU)	2	14 A	Receptacle Female Sockets	Bulkhead - Rear Side Nut	Industrial Medical Military Testing Equipment & Measurement	Gray White	A	Plastic	-50 °C	120 °C	Unshielded	IP50
ODU G11MA7-P10LCC0-0050	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	Brass	1	Polysulfone (PSU)	10	2.75 A	Receptacle Female Sockets	Bulkhead - Rear Side Nut	Industrial Medical Military Testing Equipment & Measurement	Gray Green	A	Plastic	-50 °C	120 °C	Unshielded	IP50
ODU G11MA7-P14LCC0-0050	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	Brass	1	Polysulfone (PSU)	14	2.5 A	Receptacle Female Sockets	Bulkhead - Rear Side Nut	Industrial Medical Military Testing Equipment & Measurement	Gray Green	A	Plastic	-50 °C	120 °C	Unshielded	IP50
ODU G11MA7-P02LPH0-0050	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	Brass	1	Polysulfone (PSU)	2	14 A	Receptacle Female Sockets	Bulkhead - Rear Side Nut	Industrial Medical Military Testing Equipment & Measurement	Gray Green	A	Plastic	-50 °C	120 °C	Unshielded	IP50
ODU G11MA7-P04LJG0-0020	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	Brass	1	Polysulfone (PSU)	4	10 A	Receptacle Female Sockets	Bulkhead - Rear Side Nut	Industrial Medical Military Testing Equipment & Measurement	Gray Red	A	Plastic	-50 °C	120 °C	Unshielded	IP50
ODU G11MA7-P07LFD0-0080	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	Brass	1	Polysulfone (PSU)	7	4.55 A	Receptacle Female Sockets	Bulkhead - Rear Side Nut	Industrial Medical Military Testing Equipment & Measurement		A	Plastic	-50 °C	120 °C	Unshielded	IP50
ODU G11MA7-P04LJG0-0070	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	Brass	1	Polysulfone (PSU)	4	10 A	Receptacle Female Sockets	Bulkhead - Rear Side Nut	Industrial Medical Military Testing Equipment & Measurement	Gray	A	Plastic	-50 °C	120 °C	Unshielded	IP50
ODU G11MA7-P09LCC0-0070	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	Brass	1	Polysulfone (PSU)	9	2.75 A	Receptacle Female Sockets	Bulkhead - Rear Side Nut	Industrial Medical Military Testing Equipment & Measurement	Gray	A	Plastic	-50 °C	120 °C	Unshielded	IP50
ODU G11MA7-P06LFD0-0070	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	Brass	1	Polysulfone (PSU)	6	4.55 A	Receptacle Female Sockets	Bulkhead - Rear Side Nut	Industrial Medical Military Testing Equipment & Measurement	Gray	A	Plastic	-50 °C	120 °C	Unshielded	IP50
ODU G11MA7-P06LFD0-0060	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	Brass	1	Polysulfone (PSU)	6	4.55 A	Receptacle Female Sockets	Bulkhead - Rear Side Nut	Industrial Medical Military Testing Equipment & Measurement	Blue Gray	A	Plastic	-50 °C	120 °C	Unshielded	IP50

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.85
		10	$ 18.26
		25	$ 17.47
		50	$ 16.91
		100	$ 16.34
		250	$ 15.44
		500	$ 14.99

Description

General part information

G11MA7-P Series

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
