450-80-212-00-018101

Active

PRECI-DIP SA

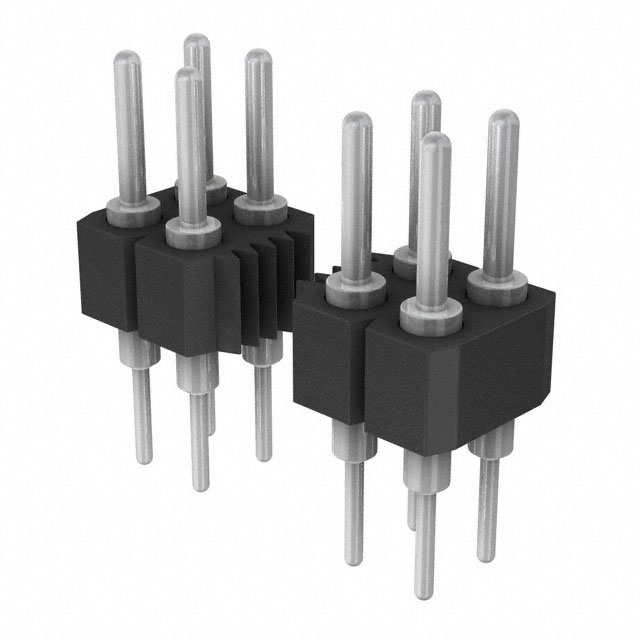

CONN HEADER VERT 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

450-80-212-00-018101

Active

PRECI-DIP SA

CONN HEADER VERT 12POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	450-80-212-00-018101

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [x]	4.3 mm
Contact Length - Mating [x]	0.169 in
Contact Length - Post	3.15 mm
Contact Length - Post	0.124 "
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.48 in
Overall Contact Length	12.19 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

450-80 Series

...

Part	Contact Shape	Current Rating (Amps)	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Insulation Material	Number of Positions	Contact Type	Connector Type	Shrouding	Contact Finish - Post	Number of Positions Loaded	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Voltage Rating	Fastening Type	Number of Rows	Features	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating [x]
PRECI-DIP SA 450-80-236-01-899101	Circular	3 A	Surface Mount	0.141 in	3.6 mm	Brass	Solder	-55 °C	125 °C	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	36	Male Pin	Header	Unshrouded	Tin	All	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	150 VDC	Push-Pull	2
PRECI-DIP SA 450-80-262-01-899101	Circular	3 A	Surface Mount	0.141 in	3.6 mm	Brass	Solder	-55 °C	125 °C	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	62	Male Pin	Header	Unshrouded	Tin	All	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	150 VDC	Push-Pull	2
PRECI-DIP SA 450-80-220-00-106191	Circular	3 A	Surface Mount	0.141 in	3.6 mm	Brass	Solder	-55 °C	125 °C	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	20	Male Pin	Header	Unshrouded	Tin	All	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	150 VDC	Push-Pull	2	Pick and Place
PRECI-DIP SA 450-80-230-01-899101	Circular	3 A	Surface Mount	0.141 in	3.6 mm	Brass	Solder	-55 °C	125 °C	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30	Male Pin	Header	Unshrouded	Tin	All	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	150 VDC	Push-Pull	2
PRECI-DIP SA 450-80-264-00-106101	Circular	3 A	Surface Mount	0.141 in	3.6 mm	Brass	Solder	-55 °C	125 °C	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	64	Male Pin	Header	Unshrouded	Tin	All	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	150 VDC	Push-Pull	2
PRECI-DIP SA 450-80-220-00-001101	Circular	3 A	Through Hole	0.156 in	3.96 mm	Brass	Solder	-55 °C	125 °C	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	20	Male Pin	Header	Unshrouded	Tin	All	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	150 VDC	Push-Pull	2		0.477 in	12.12 mm	0.164 in	4.17 mm
PRECI-DIP SA 450-80-218-00-006101	Circular	3 A	Through Hole	0.141 in	3.6 mm	Brass	Solder	-55 °C	125 °C	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	18	Male Pin	Header	Unshrouded	Tin	All	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	150 VDC	Push-Pull	2		0.394 in	10 mm	0.114 in	2.9 mm
PRECI-DIP SA 450-80-212-00-018101	Circular	3 A	Through Hole			Brass	Solder	-55 °C	125 °C	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	12	Male Pin	Header	Unshrouded	Tin	All	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	150 VDC	Push-Pull	2		0.48 in	12.19 mm	0.124 "	3.15 mm	4.3 mm	0.169 in
PRECI-DIP SA 450-80-236-00-006101	Circular	3 A	Through Hole	0.141 in	3.6 mm	Brass	Solder	-55 °C	125 °C	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	36	Male Pin	Header	Unshrouded	Tin	All	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	150 VDC	Push-Pull	2		0.394 in	10 mm	0.114 in	2.9 mm
PRECI-DIP SA 450-80-260-00-106101	Circular	3 A	Surface Mount	0.141 in	3.6 mm	Brass	Solder	-55 °C	125 °C	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	60	Male Pin	Header	Unshrouded	Tin	All	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	150 VDC	Push-Pull	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	600	$ 1.15

Description

General part information

450-80 Series

Connector Header Through Hole 12 position 0.100" (2.54mm)
