JBXEA0G03FCSDS
ActiveSouriau-Sunbank by Eaton

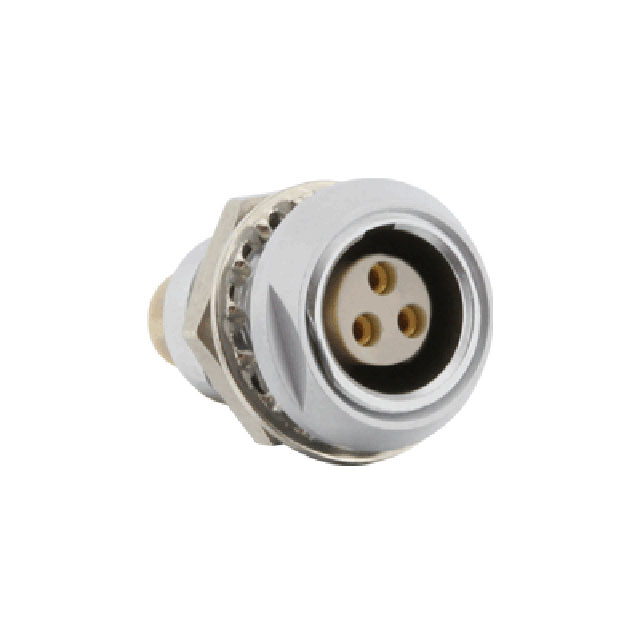

CONN RCPT FMALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JBXEA0G03FCSDS
ActiveSouriau-Sunbank by Eaton
CONN RCPT FMALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JBXEA0G03FCSDS |
|---|---|
| Applications | Instrumentation, Medical, Telecommunications, Industrial |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.5 µm |
| Contact Finish Thickness - Mating | 19.7 µin |
| Current Rating (Amps) | 8 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP40 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front or Rear Side Nut |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | G |
| Primary Material | Metal |
| Shell Finish | Chrome over Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 0 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 600 V |
JBXEA0G Series
| Part | Color | Voltage Rating | Mounting Feature | Insert Material | Number of Positions | Connector Type | Primary Material | Mounting Type | Material Flammability Rating | Termination | Ingress Protection | Orientation | Shell Material | Contact Finish - Mating | Fastening Type | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | Silver | 660 V | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | 4 | Receptacle Female Sockets | Metal | Panel Mount Right Angle Through Hole | UL94 V-0 | Solder | IP40 | G | Brass | Gold | Push-Pull | 0 | 125 °C | -40 °C | Shielded | Industrial Instrumentation Medical Telecommunications | 0.5 µm | 19.7 µin | 7 A | Chrome over Nickel |
Souriau-Sunbank by Eaton | Silver | 600 V | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | Receptacle Female Sockets | Metal | UL94 V-0 | Crimp | IP40 | G | Brass | Gold | Push-Pull | 0 | 125 °C | -40 °C | Shielded | Industrial Instrumentation Medical Telecommunications | 0.5 µm | 19.7 µin | 8 A | Chrome over Nickel | ||
Souriau-Sunbank by Eaton | Black | 660 V | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | 4 | Receptacle Female Sockets | Metal | Panel Mount Through Hole | UL94 V-0 | Solder | IP40 | G | Brass | Gold | Push-Pull | 0 | 125 °C | -40 °C | Shielded | Industrial Instrumentation Medical Telecommunications | 0.5 µm | 19.7 µin | 7 A | Black Chrome over Nickel |
Souriau-Sunbank by Eaton | Black | 400 V | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | Receptacle Female Sockets | Metal | Panel Mount Through Hole | UL94 V-0 | Solder | IP40 | G | Brass | Gold | Push-Pull | 0 | 125 °C | -40 °C | Shielded | Industrial Instrumentation Medical Telecommunications | 0.5 µm | 19.7 µin | 6.5 A | Black Chrome over Nickel | |
Souriau-Sunbank by Eaton | Silver | 660 V | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | 2 | Receptacle Female Sockets | Metal | UL94 V-0 | IP40 | G | Brass | Gold | Push-Pull | 0 | 125 °C | -40 °C | Shielded | Industrial Instrumentation Medical Telecommunications | 0.5 µm | 19.7 µin | 10 A | Chrome over Nickel | ||
Souriau-Sunbank by Eaton | Silver | 400 V | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | Receptacle Female Sockets | Metal | Panel Mount Right Angle Through Hole | UL94 V-0 | Solder | IP40 | G | Brass | Gold | Push-Pull | 0 | 125 °C | -40 °C | Shielded | Industrial Instrumentation Medical Telecommunications | 0.5 µm | 19.7 µin | 6.5 A | Chrome over Nickel | |
Souriau-Sunbank by Eaton | Silver | 400 V | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | Receptacle Female Sockets | Metal | UL94 V-0 | Crimp | IP40 | G | Brass | Gold | Push-Pull | 0 | 125 °C | -40 °C | Shielded | Industrial Instrumentation Medical Telecommunications | 0.5 µm | 19.7 µin | 6.5 A | Chrome over Nickel | ||
Souriau-Sunbank by Eaton | Silver | 660 V | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | 4 | Receptacle Female Sockets | Metal | UL94 V-0 | IP40 | G | Brass | Gold | Push-Pull | 0 | 125 °C | -40 °C | Shielded | Industrial Instrumentation Medical Telecommunications | 0.5 µm | 19.7 µin | 7 A | Chrome over Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 38.78 | |
Description
General part information
JBXEA0G Series
3 Position Circular Connector Receptacle, Female Sockets Crimp
