JBXEA0G02FSSDS

Active

Souriau-Sunbank by Eaton

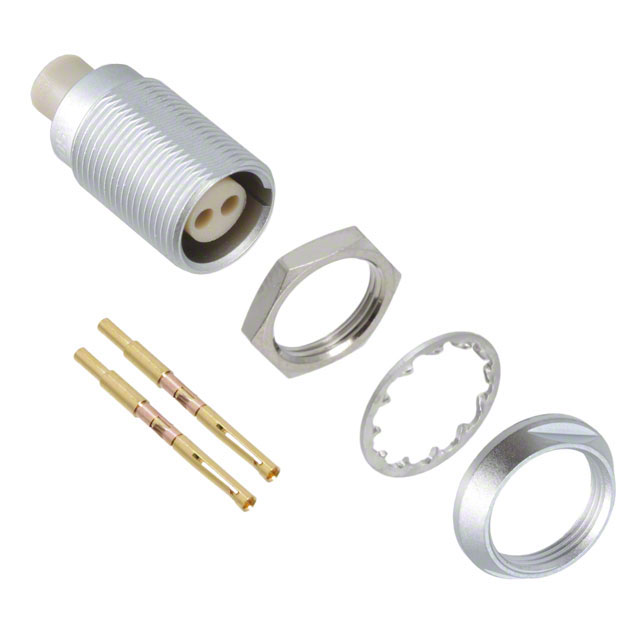

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JBXEA0G02FSSDS

Active

Souriau-Sunbank by Eaton

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JBXEA0G02FSSDS

Applications	Instrumentation, Medical, Telecommunications, Industrial
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Ingress Protection	IP40
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front or Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded
Voltage Rating	660 V

JBXEA0G Series

Part	Color	Voltage Rating	Mounting Feature	Insert Material	Number of Positions	Connector Type	Primary Material	Mounting Type	Material Flammability Rating	Termination	Ingress Protection	Orientation	Shell Material	Contact Finish - Mating	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Shell Finish
Souriau-Sunbank by Eaton JBXEA0G04FQSDS	Silver	660 V	Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)	4	Receptacle Female Sockets	Metal	Panel Mount Right Angle Through Hole	UL94 V-0	Solder	IP40	G	Brass	Gold	Push-Pull	125 °C	-40 °C	Shielded	Industrial Instrumentation Medical Telecommunications	0.5 µm	19.7 µin	7 A	Chrome over Nickel
Souriau-Sunbank by Eaton JBXEA0G03FCSDS	Silver	600 V	Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)		Receptacle Female Sockets	Metal		UL94 V-0	Crimp	IP40	G	Brass	Gold	Push-Pull	125 °C	-40 °C	Shielded	Industrial Instrumentation Medical Telecommunications	0.5 µm	19.7 µin	8 A	Chrome over Nickel
Souriau-Sunbank by Eaton JBXEA0G04FPNDS	Black	660 V	Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)	4	Receptacle Female Sockets	Metal	Panel Mount Through Hole	UL94 V-0	Solder	IP40	G	Brass	Gold	Push-Pull	125 °C	-40 °C	Shielded	Industrial Instrumentation Medical Telecommunications	0.5 µm	19.7 µin	7 A	Black Chrome over Nickel
Souriau-Sunbank by Eaton JBXEA0G05FPNDS	Black	400 V	Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)		Receptacle Female Sockets	Metal	Panel Mount Through Hole	UL94 V-0	Solder	IP40	G	Brass	Gold	Push-Pull	125 °C	-40 °C	Shielded	Industrial Instrumentation Medical Telecommunications	0.5 µm	19.7 µin	6.5 A	Black Chrome over Nickel
Souriau-Sunbank by Eaton JBXEA0G02FSSDS	Silver	660 V	Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)	2	Receptacle Female Sockets	Metal		UL94 V-0		IP40	G	Brass	Gold	Push-Pull	125 °C	-40 °C	Shielded	Industrial Instrumentation Medical Telecommunications	0.5 µm	19.7 µin	10 A	Chrome over Nickel
Souriau-Sunbank by Eaton JBXEA0G05FQSDS	Silver	400 V	Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)		Receptacle Female Sockets	Metal	Panel Mount Right Angle Through Hole	UL94 V-0	Solder	IP40	G	Brass	Gold	Push-Pull	125 °C	-40 °C	Shielded	Industrial Instrumentation Medical Telecommunications	0.5 µm	19.7 µin	6.5 A	Chrome over Nickel
Souriau-Sunbank by Eaton JBXEA0G05FCSDS	Silver	400 V	Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)		Receptacle Female Sockets	Metal		UL94 V-0	Crimp	IP40	G	Brass	Gold	Push-Pull	125 °C	-40 °C	Shielded	Industrial Instrumentation Medical Telecommunications	0.5 µm	19.7 µin	6.5 A	Chrome over Nickel
Souriau-Sunbank by Eaton JBXEA0G04FSSDS	Silver	660 V	Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)	4	Receptacle Female Sockets	Metal		UL94 V-0		IP40	G	Brass	Gold	Push-Pull	125 °C	-40 °C	Shielded	Industrial Instrumentation Medical Telecommunications	0.5 µm	19.7 µin	7 A	Chrome over Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.19
		10	$ 20.30
		25	$ 19.43
		50	$ 18.80
		100	$ 18.17
		250	$ 17.17
		500	$ 16.67

Description

General part information

JBXEA0G Series

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
