LCM-S04004DSR
ActiveLumex Opto/Components Inc.

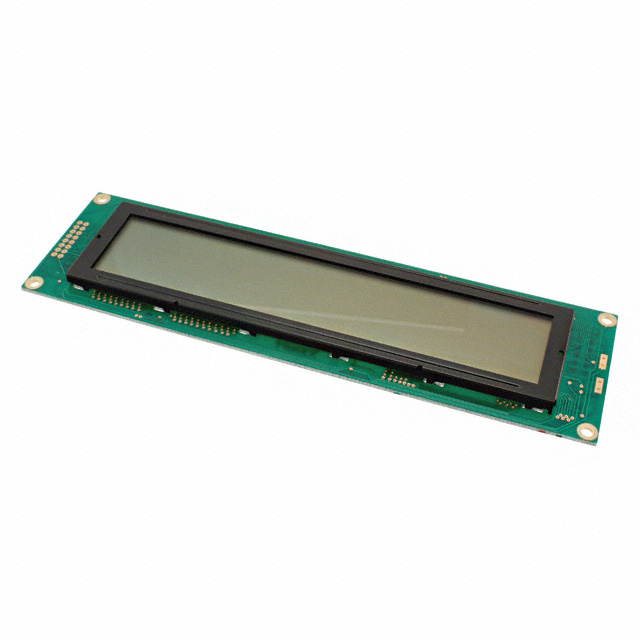

LCD MOD 160DIG 40 X 4 REFLECTIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCM-S04004DSR
ActiveLumex Opto/Components Inc.
LCD MOD 160DIG 40 X 4 REFLECTIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCM-S04004DSR |
|---|---|
| Background Color | Green |
| Backlight | Without Backlight |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 2.78 mm |
| Character Size [z] | 4.89 mm |
| Display Format [x] | 40 |
| Display Format [y] | 4 |
| Display Mode | Reflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.5 mm |
| Dot Size [y] | 0.55 mm |
| Interface | Parallel |
| Number of Characters | 160 |
| Outline L x W x H [x] | 190 mm |
| Outline L x W x H [y] | 54 mm |
| Outline L x W x H [z] | 10 mm |
| Viewing Area [x] | 149 mm |
| Viewing Area [y] | 29.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LCM-S04004 Series
Character Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 190.00mm x 54.00mm x 10.00mm
