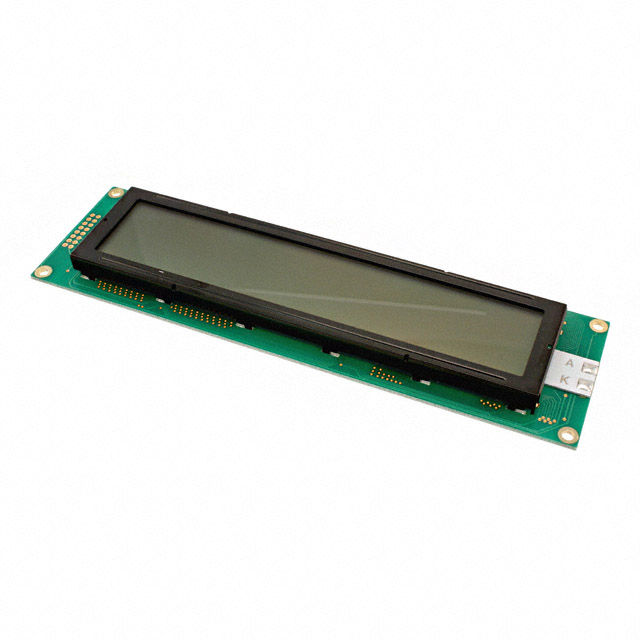

LCM-S04004DSF
ActiveLumex Opto/Components Inc.
LCD MOD 160DIG 40X4 TRAN YLW/GRN
Deep-Dive with AI
Search across all available documentation for this part.
LCM-S04004DSF
ActiveLumex Opto/Components Inc.
LCD MOD 160DIG 40X4 TRAN YLW/GRN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCM-S04004DSF |
|---|---|
| Background Color | Green |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 2.78 mm |
| Character Size [z] | 4.89 mm |
| Display Format [x] | 40 |
| Display Format [y] | 4 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.5 mm |
| Dot Size [y] | 0.55 mm |
| Interface | Parallel |
| Number of Characters | 160 |
| Outline L x W x H [x] | 190 mm |
| Outline L x W x H [y] | 54 mm |
| Outline L x W x H [z] | 14.5 mm |
| Viewing Area [x] | 149 mm |
| Viewing Area [y] | 29.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 66.80 | |
| 10 | $ 55.34 | |||
| 100 | $ 53.40 | |||
Description
General part information
LCM-S04004 Series
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 190.00mm x 54.00mm x 14.50mm
Documents
Technical documentation and resources
No documents available
