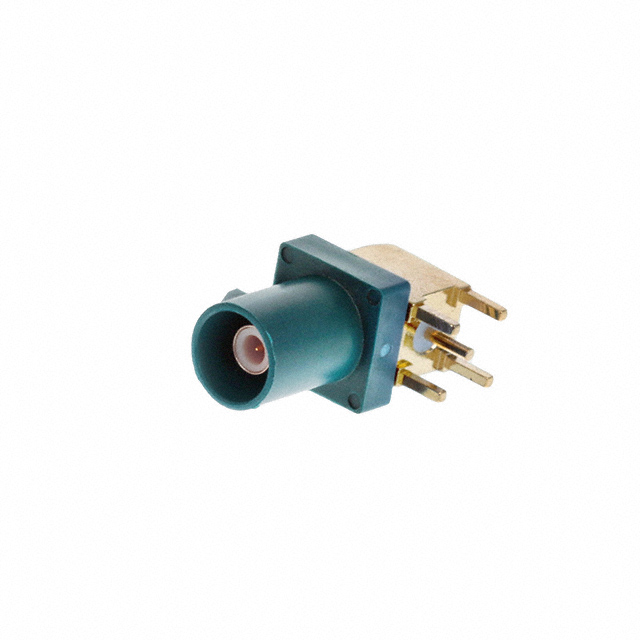

RF55-32Z-T-00-50-A-SH
ActiveAdam Tech
FAKRA PLUG SMB TYPE: RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
RF55-32Z-T-00-50-A-SH
ActiveAdam Tech
FAKRA PLUG SMB TYPE: RIGHT ANGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RF55-32Z-T-00-50-A-SH |
|---|---|
| Body Finish | Nickel, Tin |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | SMB, Fakra |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Locking Ramp |
| Features | Code Z |
| Frequency - Max [Max] | 4 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.69 | |
| 10 | $ 3.13 | |||
| 25 | $ 2.94 | |||
| 40 | $ 3.15 | |||
| 50 | $ 2.80 | |||
| 80 | $ 2.92 | |||
| 100 | $ 2.66 | |||
Description
General part information
RF55-32 Series
SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
