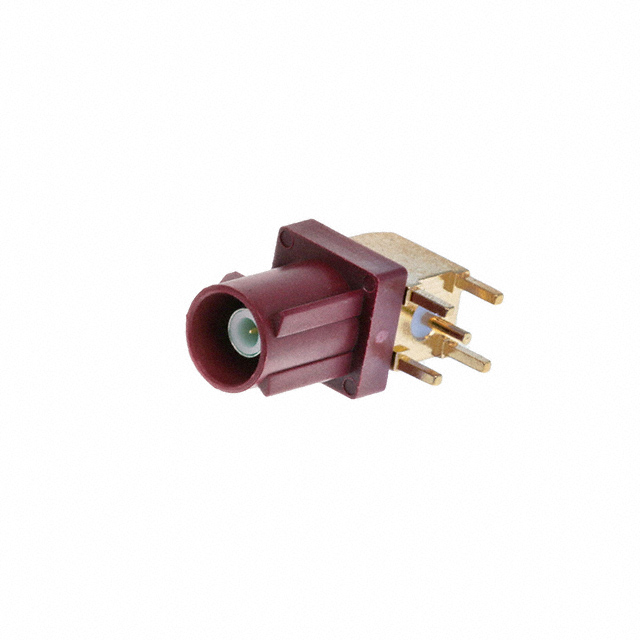

RF55-32L-T-00-50-A-SH

Active

Adam Tech

FAKRA PLUG SMB TYPE: RIGHT ANGLE

Search across all available documentation for this part.

Active

Adam Tech

FAKRA PLUG SMB TYPE: RIGHT ANGLE

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Number of Ports	Impedance	Contact Termination	Mounting Type	Center Contact Material	Features	Frequency - Max [Max]	Connector Style	Shield Termination	Body Material	Center Contact Plating	Housing Color
Adam Tech RF55-32Z-T-00-50-A-SH	Male Pin Plug	Nickel Tin	85 °C	-40 °C	Locking Ramp	1	50 Ohms	Solder	Through Hole Right Angle	Phosphor Bronze	Code Z	4 GHz	Fakra SMB	Solder	Brass	Gold
Adam Tech RF55-32K-T-00-50-A-SH	Male Pin Plug	Nickel Tin	85 °C	-40 °C	Locking Ramp	1	50 Ohms	Solder	Through Hole Right Angle	Phosphor Bronze	Code K	4 GHz	Fakra SMB	Solder	Brass	Gold	Curry
Adam Tech RF55-32C-T-00-50-A-SH	Male Pin Plug	Nickel Tin	85 °C	-40 °C	Locking Ramp	1	50 Ohms	Solder	Through Hole Right Angle	Phosphor Bronze	Code C	4 GHz	Fakra SMB	Solder	Brass	Gold	Blue
Adam Tech RF55-32L-T-00-50-A-SH	Male Pin Plug	Nickel Tin	85 °C	-40 °C	Locking Ramp	1	50 Ohms	Solder	Through Hole Right Angle	Phosphor Bronze	Code L	4 GHz	Fakra SMB	Solder	Brass	Gold	Carmine Red
Adam Tech RF55-32D-T-00-50-A-SH	Male Pin Plug	Nickel Tin	85 °C	-40 °C	Locking Ramp	1	50 Ohms	Solder	Through Hole Right Angle	Phosphor Bronze	Code D	4 GHz	Fakra SMB	Solder	Brass	Gold	Bordeaux Violet
