892-70-012-20-001101

Active

PRECI-DIP SA

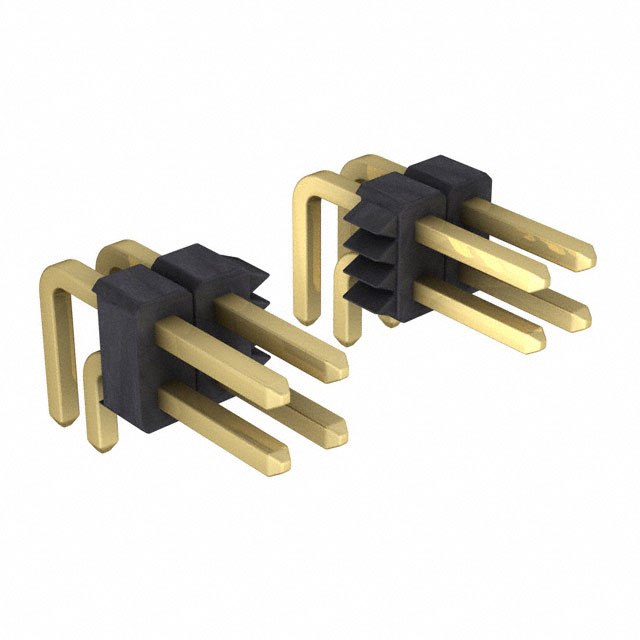

CONN HEADER R/A 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

892-70-012-20-001101

Active

PRECI-DIP SA

CONN HEADER R/A 12POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-70-012-20-001101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

892-70 Series

...

Part	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Number of Rows	Termination	Contact Material	Connector Type	Insulation Material	Contact Finish Thickness - Mating	Number of Positions	Number of Positions Loaded	Shrouding	Contact Type	Insulation Height	Insulation Height	Contact Shape	Voltage Rating	Contact Finish - Mating	Current Rating (Amps)	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Finish - Post	Fastening Type
PRECI-DIP SA 892-70-060-10-002101	0.118 in	3 mm	Flash	2.54 mm	0.1 in	Black	2	Solder	Brass	Header	Glass Filled Nylon Polyamide (PA)	Flash	60	All	Unshrouded	Male Pin	0.1 in	2.54 mm	Square	150 VDC	Gold	3 A	UL94 V-0	7 mm	0.276 in	-55 °C	125 °C	0.1 in	2.54 mm	12.54 mm	0.494 in	Through Hole	Gold	Push-Pull
PRECI-DIP SA 892-70-046-10-004101	0.118 in	3 mm	Flash	2.54 mm	0.1 in	Black	2	Solder	Brass	Header	Glass Filled Nylon Polyamide (PA)	Flash	46	All	Unshrouded	Male Pin	0.1 in	2.54 mm	Square	150 VDC	Gold	3 A	UL94 V-0	14.91 mm	0.587 in	-55 °C	125 °C	0.1 in	2.54 mm	20.44 mm	0.805 "	Through Hole	Gold	Push-Pull
PRECI-DIP SA 892-70-058-10-003101	0.118 in	3 mm	Flash	2.54 mm	0.1 in	Black	2	Solder	Brass	Header	Glass Filled Nylon Polyamide (PA)	Flash	58	All	Unshrouded	Male Pin	0.1 in	2.54 mm	Square	150 VDC	Gold	3 A	UL94 V-0	8.51 mm	0.335 in	-55 °C	125 °C	0.1 in	2.54 mm	14.04 mm	0.553 in	Through Hole	Gold	Push-Pull
PRECI-DIP SA 892-70-012-20-001101	0.118 in	3 mm	Flash	2.54 mm	0.1 in	Black	2	Solder	Brass	Header	Glass Filled Nylon Polyamide (PA)	Flash	12	All	Unshrouded	Male Pin			Square	150 VDC	Gold	3 A	UL94 V-0	6 mm	0.236 in	-55 °C	125 °C	0.1 in	2.54 mm			Through Hole Right Angle	Gold	Push-Pull
PRECI-DIP SA 892-70-040-10-003101	0.118 in	3 mm	Flash	2.54 mm	0.1 in	Black	2	Solder	Brass	Header	Glass Filled Nylon Polyamide (PA)	Flash	40	All	Unshrouded	Male Pin	0.1 in	2.54 mm	Square	150 VDC	Gold	3 A	UL94 V-0	8.51 mm	0.335 in	-55 °C	125 °C	0.1 in	2.54 mm	14.04 mm	0.553 in	Through Hole	Gold	Push-Pull
PRECI-DIP SA 892-70-062-10-003101	0.118 in	3 mm	Flash	2.54 mm	0.1 in	Black	2	Solder	Brass	Header	Glass Filled Nylon Polyamide (PA)	Flash	62	All	Unshrouded	Male Pin	0.1 in	2.54 mm	Square	150 VDC	Gold	3 A	UL94 V-0	8.51 mm	0.335 in	-55 °C	125 °C	0.1 in	2.54 mm	14.04 mm	0.553 in	Through Hole	Gold	Push-Pull
PRECI-DIP SA 892-70-054-10-004101	0.118 in	3 mm	Flash	2.54 mm	0.1 in	Black	2	Solder	Brass	Header	Glass Filled Nylon Polyamide (PA)	Flash	54	All	Unshrouded	Male Pin	0.1 in	2.54 mm	Square	150 VDC	Gold	3 A	UL94 V-0	14.91 mm	0.587 in	-55 °C	125 °C	0.1 in	2.54 mm	20.44 mm	0.805 "	Through Hole	Gold	Push-Pull
PRECI-DIP SA 892-70-052-10-001101	0.122 "	3.1 mm	Flash	2.54 mm	0.1 in	Black	2	Solder	Brass	Header	Glass Filled Nylon Polyamide (PA)	Flash	52	All	Unshrouded	Male Pin	0.1 in	2.54 mm	Square	150 VDC	Gold	3 A	UL94 V-0	6 mm	0.236 in	-55 °C	125 °C	0.1 in	2.54 mm	11.64 mm	0.458 "	Through Hole	Gold	Push-Pull
PRECI-DIP SA 892-70-066-10-002101	0.118 in	3 mm	Flash	2.54 mm	0.1 in	Black	2	Solder	Brass	Header	Glass Filled Nylon Polyamide (PA)	Flash	66	All	Unshrouded	Male Pin	0.1 in	2.54 mm	Square	150 VDC	Gold	3 A	UL94 V-0	7 mm	0.276 in	-55 °C	125 °C	0.1 in	2.54 mm	12.54 mm	0.494 in	Through Hole	Gold	Push-Pull
PRECI-DIP SA 892-70-062-10-001101	0.122 "	3.1 mm	Flash	2.54 mm	0.1 in	Black	2	Solder	Brass	Header	Glass Filled Nylon Polyamide (PA)	Flash	62	All	Unshrouded	Male Pin	0.1 in	2.54 mm	Square	150 VDC	Gold	3 A	UL94 V-0	6 mm	0.236 in	-55 °C	125 °C	0.1 in	2.54 mm	11.64 mm	0.458 "	Through Hole	Gold	Push-Pull

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1125	$ 0.65

Description

General part information

892-70 Series

Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
