836-22-004-30-001101

Active

Mill-Max Manufacturing Corp.

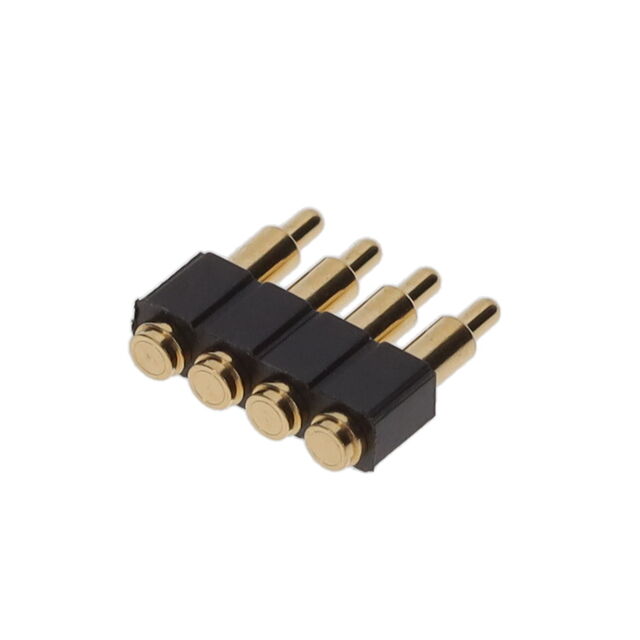

CONN SPRING PISTON 4POS SMD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 4POS SMD

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Type	Material	Number of Rows	Number of Contacts [custom]	Contact Finish	Number of Contacts
Mill-Max Manufacturing Corp. 836-22-006-10-001101	0.079 in	2 mm	10 Áin	0.25 Ám	Through Hole	Piston	Copper Alloy	1	6	Gold
Mill-Max Manufacturing Corp. 836-22-010-10-001101	0.079 in	2 mm	10 Áin	0.25 Ám	Through Hole	Piston	Copper Alloy	1		Gold	10
Mill-Max Manufacturing Corp. 836-22-004-30-001101	0.079 in	2 mm	20 µin	0.51 µm	Surface Mount	Piston	Copper Alloy	1	4	Gold
Mill-Max Manufacturing Corp. 836-22-001-30-001101			20 µin	0.51 µm	Surface Mount	Piston	Copper Alloy	1		Gold	1
Mill-Max Manufacturing Corp. 836-22-010-30-001101	0.079 in	2 mm	20 µin	0.51 µm	Surface Mount	Piston	Copper Alloy	1		Gold	10
Mill-Max Manufacturing Corp. 836-22-005-30-001101	0.079 in	2 mm	20 µin	0.51 µm	Surface Mount	Piston	Copper Alloy	1		Gold	5
Mill-Max Manufacturing Corp. 836-22-005-10-001101	0.079 in	2 mm	10 Áin	0.25 Ám	Through Hole	Piston	Copper Alloy	1		Gold	5
Mill-Max Manufacturing Corp. 836-22-001-10-001101			10 Áin	0.25 Ám	Through Hole	Piston	Copper Alloy	1		Gold	1
Mill-Max Manufacturing Corp. 836-22-008-30-001101	0.079 in	2 mm	20 µin	0.51 µm	Surface Mount	Piston	Copper Alloy	1		Gold	8
Mill-Max Manufacturing Corp. 836-22-004-10-001101	0.079 in	2 mm	10 Áin	0.25 Ám	Through Hole	Piston	Copper Alloy	1	4	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Spring Piston Connector Surface Mount

Technical documentation and resources

No documents available
