836-22-010-10-001101

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 10POS PCB

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 10POS PCB

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Type	Material	Number of Rows	Number of Contacts [custom]	Contact Finish	Number of Contacts
Mill-Max Manufacturing Corp. 836-22-006-10-001101	0.079 in	2 mm	10 Áin	0.25 Ám	Through Hole	Piston	Copper Alloy	1	6	Gold
Mill-Max Manufacturing Corp. 836-22-010-10-001101	0.079 in	2 mm	10 Áin	0.25 Ám	Through Hole	Piston	Copper Alloy	1		Gold	10
Mill-Max Manufacturing Corp. 836-22-004-30-001101	0.079 in	2 mm	20 µin	0.51 µm	Surface Mount	Piston	Copper Alloy	1	4	Gold
Mill-Max Manufacturing Corp. 836-22-001-30-001101			20 µin	0.51 µm	Surface Mount	Piston	Copper Alloy	1		Gold	1
Mill-Max Manufacturing Corp. 836-22-010-30-001101	0.079 in	2 mm	20 µin	0.51 µm	Surface Mount	Piston	Copper Alloy	1		Gold	10
Mill-Max Manufacturing Corp. 836-22-005-30-001101	0.079 in	2 mm	20 µin	0.51 µm	Surface Mount	Piston	Copper Alloy	1		Gold	5
Mill-Max Manufacturing Corp. 836-22-005-10-001101	0.079 in	2 mm	10 Áin	0.25 Ám	Through Hole	Piston	Copper Alloy	1		Gold	5
Mill-Max Manufacturing Corp. 836-22-001-10-001101			10 Áin	0.25 Ám	Through Hole	Piston	Copper Alloy	1		Gold	1
Mill-Max Manufacturing Corp. 836-22-008-30-001101	0.079 in	2 mm	20 µin	0.51 µm	Surface Mount	Piston	Copper Alloy	1		Gold	8
Mill-Max Manufacturing Corp. 836-22-004-10-001101	0.079 in	2 mm	10 Áin	0.25 Ám	Through Hole	Piston	Copper Alloy	1	4	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

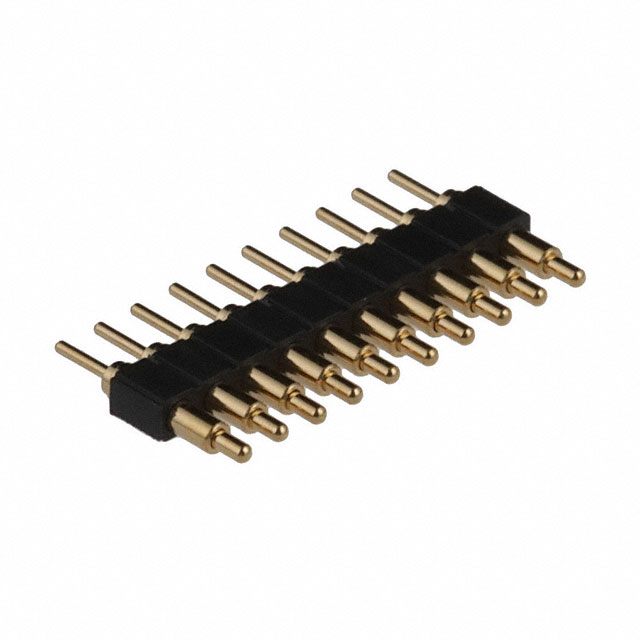

10 Position Spring Piston Connector Through Hole

Technical documentation and resources

No documents available
