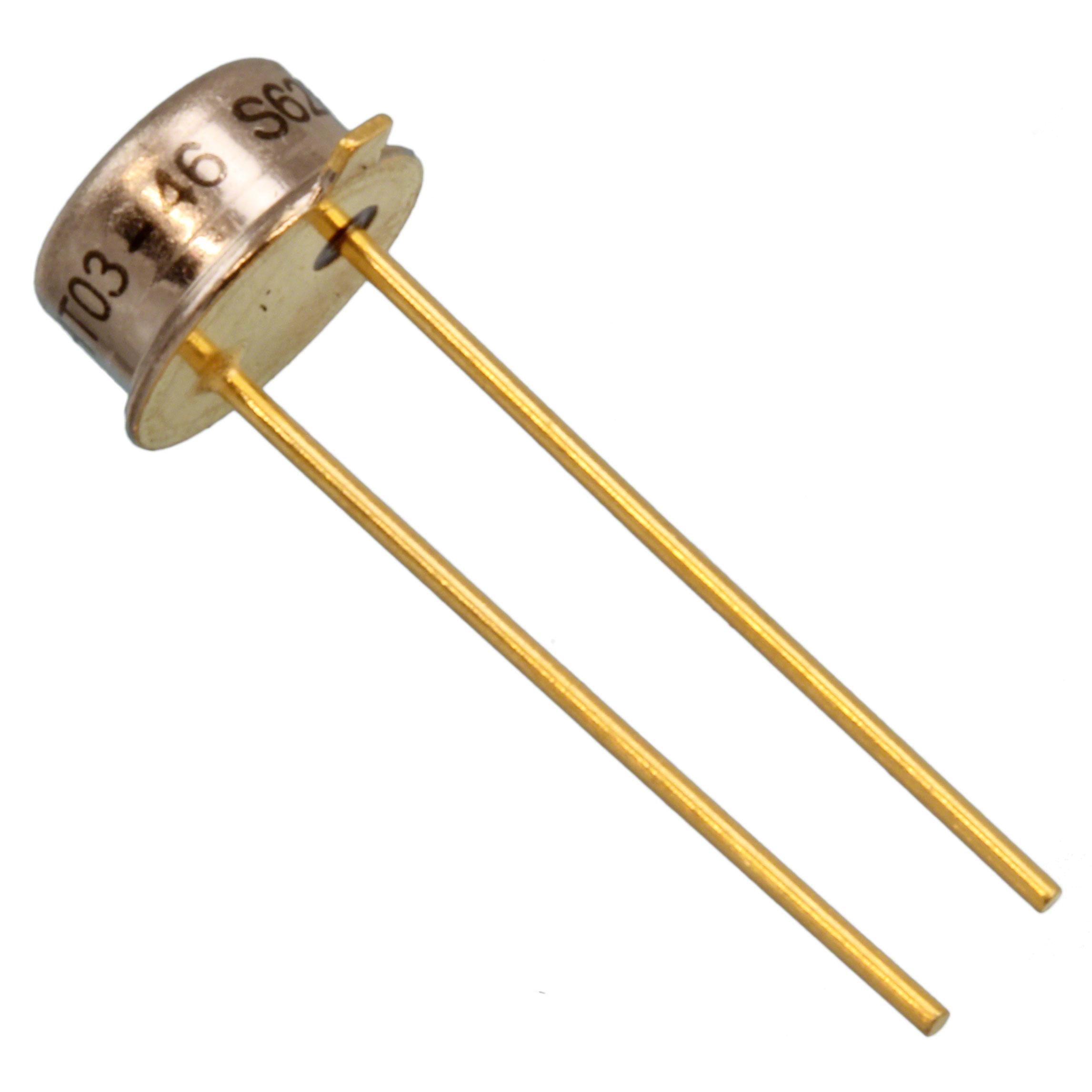

GB02SHT03-46

Active

GeneSiC Semiconductor

DIODE SIL CARBIDE 300V 4A TO46

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE SIL CARBIDE 300V 4A TO46

Technical Specifications

Parameters and characteristics for this part

Specification	GB02SHT03-46

Capacitance @ Vr, F	76 pF
Current - Average Rectified (Io)	4 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	225 °C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-206AB, TO-46-3 Metal Can
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-46
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	300 V

Part	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Speed	Technology	Reverse Recovery Time (trr)	Supplier Device Package	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Average Rectified (Io)	Mounting Type
GeneSiC Semiconductor GB02SHT03-46	TO-206AB TO-46-3 Metal Can	300 V	5 µA	76 pF	No Recovery Time	SiC (Silicon Carbide) Schottky	0 ns	TO-46	-55 C	225 °C	4 A	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 300 V 4A Through Hole TO-46
