H2ABG-10103-B8

Active

Hirose Electric USA, Inc.

JUMPER-H1503TR/A3048B/H1501TR 3"

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

JUMPER-H1503TR/A3048B/H1501TR 3"

Technical Specifications

Parameters and characteristics for this part

...

Part	Number of Conductors	Color	Contact Finish	Length [x]	Length [x]	Number of Rows	Wire Gauge	Contact End	Length	Length
Hirose Electric USA, Inc. H2ABG-10104-R6	1	Red	Gold	101.6 mm	4 "	1	26 AWG	Socket to Pin
Hirose Electric USA, Inc. H2ABG-10110-V6	1	Violet	Gold		10 in	1	26 AWG	Socket to Pin	254 mm
Hirose Electric USA, Inc. H2ABG-10102-A6	1		Gold			1	26 AWG	Socket to Pin
Hirose Electric USA, Inc. H2ABG-10104-S4	1	Slate	Gold	101.6 mm	4 "	1	24 AWG	Socket to Pin
Hirose Electric USA, Inc. H2ABG-10106-B4	1	Black	Gold			1	24 AWG	Socket to Pin	152.4 mm	6 in
Hirose Electric USA, Inc. H2ABG-10106-V8	1	Violet	Gold			1	28 AWG	Socket to Pin	152.4 mm	6 in
Hirose Electric USA, Inc. H2ABG-10105-B4	1	Black	Gold	127 mm	5 in	1	24 AWG	Socket to Pin
Hirose Electric USA, Inc. H2ABG-10108-W8	1	White	Gold			1	28 AWG	Socket to Pin	203.2 mm	8 in
Hirose Electric USA, Inc. H2ABG-10112-G6	1	Green	Gold		12 in	1	26 AWG	Socket to Pin	304.8 mm
Hirose Electric USA, Inc. H2ABG-10103-B8	1	Black	Gold		3 in	1	28 AWG	Socket to Pin	76.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

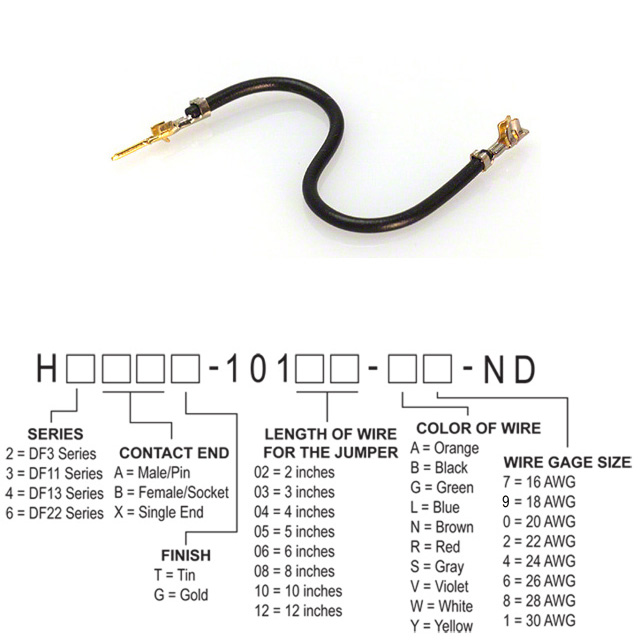

Black 28 AWG Jumper Lead Socket to Pin Gold 3.00" (76.20mm)

Technical documentation and resources
