H2ABG-10108-W8
ActiveHirose Electric USA, Inc.
JUMPER-H1503TR/A3048W/H1501TR 8"
Deep-Dive with AI
Search across all available documentation for this part.
H2ABG-10108-W8
ActiveHirose Electric USA, Inc.
JUMPER-H1503TR/A3048W/H1501TR 8"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H2ABG-10108-W8 |
|---|---|
| Color | White |
| Contact End | Socket to Pin |
| Contact Finish | Gold |
| Length | 203.2 mm |
| Length | 8 in |
| Number of Conductors | 1 |
| Number of Rows | 1 |
| Wire Gauge | 28 AWG |
H2ABG Series
...
| Part | Number of Conductors | Color | Contact Finish | Length [x] | Length [x] | Number of Rows | Wire Gauge | Contact End | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 1 | Red | Gold | 101.6 mm | 4 " | 1 | 26 AWG | Socket to Pin | ||
Hirose Electric USA, Inc. | 1 | Violet | Gold | 10 in | 1 | 26 AWG | Socket to Pin | 254 mm | ||
Hirose Electric USA, Inc. | 1 | Gold | 1 | 26 AWG | Socket to Pin | |||||
Hirose Electric USA, Inc. | 1 | Slate | Gold | 101.6 mm | 4 " | 1 | 24 AWG | Socket to Pin | ||
Hirose Electric USA, Inc. | 1 | Black | Gold | 1 | 24 AWG | Socket to Pin | 152.4 mm | 6 in | ||
Hirose Electric USA, Inc. | 1 | Violet | Gold | 1 | 28 AWG | Socket to Pin | 152.4 mm | 6 in | ||
Hirose Electric USA, Inc. | 1 | Black | Gold | 127 mm | 5 in | 1 | 24 AWG | Socket to Pin | ||
Hirose Electric USA, Inc. | 1 | White | Gold | 1 | 28 AWG | Socket to Pin | 203.2 mm | 8 in | ||
Hirose Electric USA, Inc. | 1 | Green | Gold | 12 in | 1 | 26 AWG | Socket to Pin | 304.8 mm | ||
Hirose Electric USA, Inc. | 1 | Black | Gold | 3 in | 1 | 28 AWG | Socket to Pin | 76.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 0.95 | |
| 30 | $ 0.84 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.73 | |||
| 250 | $ 0.66 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.57 | |||
| 2500 | $ 0.52 | |||
| 5000 | $ 0.49 | |||
Description
General part information
H2ABG Series

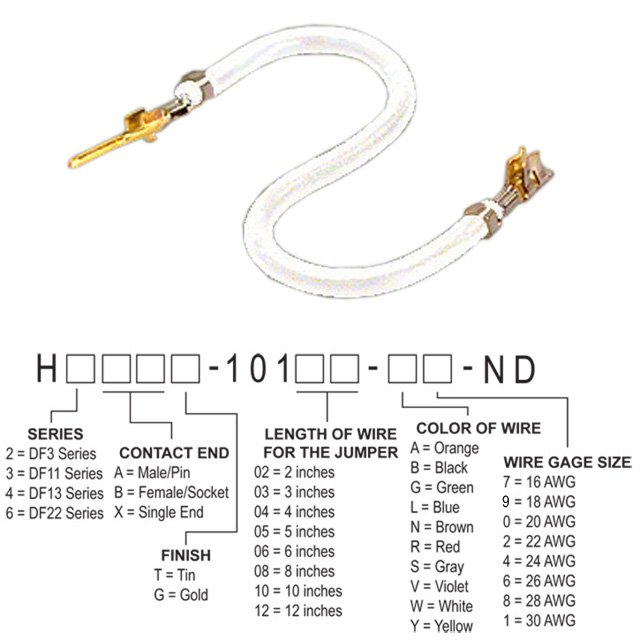

White 28 AWG Jumper Lead Socket to Pin Gold 8.00" (203.20mm)
