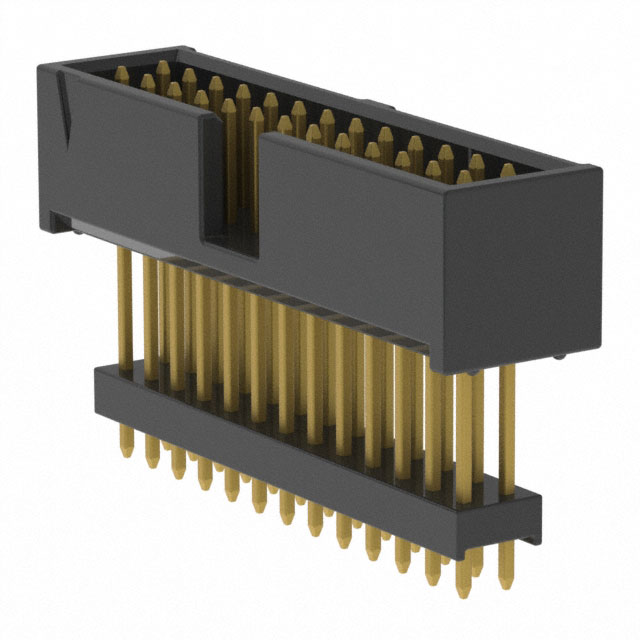

ZSS-113-03-G-D-731

Active

Samtec Inc.

CONN HDR .100" 26POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet .100" Shrouded Elevated Terminal Strip +1

ZSS-113-03-G-D-731

Active

Samtec Inc.

CONN HDR .100" 26POS

Deep-Dive with AI

DocumentsDatasheet .100" Shrouded Elevated Terminal Strip +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-113-03-G-D-731

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	0.099 in
Contact Length - Post	2.51 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [z]	0.731 "
Insulation Height [z]	18.57 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.83 in
Overall Contact Length	21.08 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

ZSS-113 Series

...

Part	Contact Finish - Mating	Current Rating (Amps)	Fastening Type	Number of Rows	Material Flammability Rating	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Height	Insulation Height	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Termination	Contact Material	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Features	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish - Post	Contact Type	Insulation Material	Style	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. ZSS-113-01-G-D-540	Gold	3 A	Push-Pull	2	UL94 V-0	All	Through Hole	3 µin	0.076 µm	10 çin	0.25 çm	Black	0.09 "	2.29 mm	0.1 in	2.54 mm	Shrouded - 4 Wall	0.54 in	13.72 mm	Elevated Header	2.54 mm	0.1 in	26	Solder	Phosphor Bronze	6.35 mm	0.25 in	-55 °C	125 °C	Square	Keying Slot	0.63 "	16 mm	Gold	Male Pin	Polyester Glass Filled	Board to Board Cable
Samtec Inc. ZSS-113-03-G-D-731	Gold	3 A	Push-Pull	2	UL94 V-0	All	Through Hole	3 µin	0.076 µm	10 çin	0.25 çm	Black		0.099 in	0.1 in	2.54 mm	Shrouded - 4 Wall			Elevated Header	2.54 mm	0.1 in	26	Solder	Phosphor Bronze	6.35 mm	0.25 in	-55 °C	125 °C	Square	Keying Slot			Gold	Male Pin	Polyester Glass Filled	Board to Board Cable	0.731 "	18.57 mm	2.51 mm	0.83 in	21.08 mm
Samtec Inc. ZSS-113-03-L-D-655
Samtec Inc. ZSS-113-01-T-D-530		3 A	Push-Pull	2	UL94 V-0	All	Through Hole					Black	0.1 in	2.54 mm	0.1 in	2.54 mm	Shrouded - 4 Wall	0.53 in	13.46 mm	Elevated Header	2.54 mm	0.1 in	26	Solder	Phosphor Bronze	6.35 mm	0.25 in	-55 °C	105 ░C	Square	Keying Slot	0.63 "	16 mm	Tin	Male Pin	Polyester Glass Filled	Board to Board Cable
Samtec Inc. ZSS-113-03-G-D-715
Samtec Inc. ZSS-113-01-G-D-465	Gold	3 A	Push-Pull	2	UL94 V-0	All	Through Hole	3 µin	0.076 µm	10 çin	0.25 çm	Black			0.1 in	2.54 mm	Shrouded - 4 Wall	0.465 in	11.81 mm	Elevated Header	2.54 mm	0.1 in	26	Solder	Phosphor Bronze	6.35 mm	0.25 in	-55 °C	125 °C	Square	Keying Slot	0.63 "	16 mm	Gold	Male Pin	Polyester Glass Filled	Board to Board Cable						0.165 in	4.19 mm
Samtec Inc. ZSS-113-04-T-D-805		3 A	Push-Pull	2	UL94 V-0	All	Through Hole					Black			0.1 in	2.54 mm	Shrouded - 4 Wall			Elevated Header	2.54 mm	0.1 in	26	Solder	Phosphor Bronze	6.35 mm	0.25 in	-55 °C	105 ░C	Square	Keying Slot			Tin	Male Pin	Polyester Glass Filled	Board to Board Cable	0.805 in	20.45 mm		0.93 in	23.62 mm	0.125 in	3.18 mm
Samtec Inc. ZSS-113-06-L-D-979	Gold	3 A	Push-Pull	2	UL94 V-0	All	Through Hole			10 çin	0.25 çm	Black	0.151 in	3.84 mm	0.1 in	2.54 mm	Shrouded - 4 Wall	0.979 in	24.87 mm	Elevated Header	2.54 mm	0.1 in	26	Solder	Phosphor Bronze	6.35 mm	0.25 in	-55 °C	125 °C	Square	Keying Slot			Tin	Male Pin	Polyester Glass Filled	Board to Board Cable				1.13 in	28.7 mm
Samtec Inc. ZSS-113-02-S-D-615
Samtec Inc. ZSS-113-09-L-D-1300

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.30
