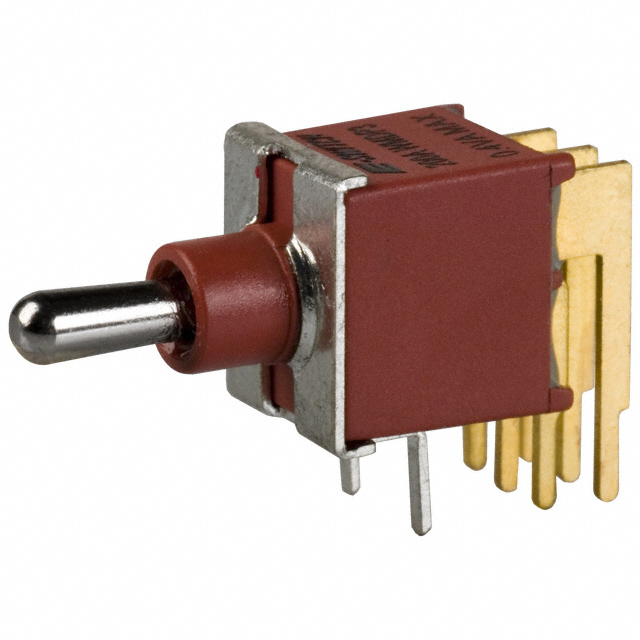

200AWMDP3T2A1M6RE

Active

E-Switch

SWITCH TOGGLE DPDT 0.4VA 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE DPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Ingress Protection	Illumination	Mounting Type	Features	Actuator Length [x]	Electrical Life	Switch Function	Voltage Rating - DC	Actuator Type	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Current Rating (Amps)	Voltage Rating - AC	Bushing Thread
E-Switch 200AWMDP3T2A1M6RE	PC Pin	IP67 - Dust Tight Waterproof	Non-Illuminated	Through Hole Right Angle	Epoxy Sealed Terminals	6.1 mm	50000 Cycles	On-Off-On	20 V	Standard Round	Brass Chrome Plated	-30 ░C	85 °C	DPDT	0.4 VA	20 V	Unthreaded
E-Switch 200AWMDP3T1A1VS2QE	PC Pin	IP67 - Dust Tight Waterproof	Non-Illuminated	Through Hole	Epoxy Sealed Terminals	10.16 mm	50000 Cycles	On-Off-On	28 V	Standard Round	Brass Chrome Plated	-30 ░C	85 °C	DPDT	3 A	120 V	Unthreaded
E-Switch 200AWMDP3T1A1M2QE	PC Pin	IP67 - Dust Tight Waterproof	Non-Illuminated	Through Hole	Epoxy Sealed Terminals	10.16 mm	50000 Cycles	On-Off-On	28 V	Standard Round	Brass Chrome Plated	-30 ░C	85 °C	DPDT	3 A	120 V	Unthreaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Through Hole, Right Angle

Technical documentation and resources

No documents available
